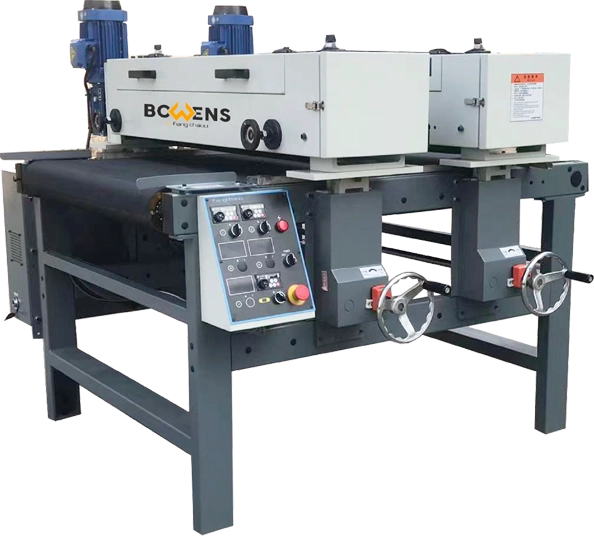

Color Brush Machine

This machine is specially designed for coloring bamboo and wood flooring, furniture, and other flat panel

This machine is specially designed for coloring bamboo and wood flooring, furniture, and other flat panel

Control panel

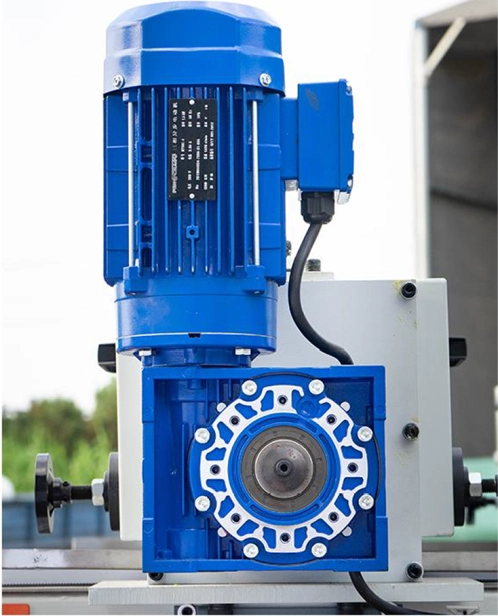

Brush motor

Brush Machine Features:

The function of the wood surface of the pores into the uniform color, complement the coating machine coloring uneven. The wood grain of the surface board treated by this machine will be cleare and the three dimensional layering will be more distinct
The main frame is assembled by 50×50 series welding base frame of high strength industrial square tube. It is raised and lowered using dovetail groove and is equipped with a height counter.
The belt stripe series with a thickness of 3 mm. Aluminum alloy housing gear motor transmission, inverter control

Coloring brush specification Ø200 mm, hair length 30 mm, hair diameter 0.1-0.15 mm.
Coloring brush can swing angle and reversed, using NRV decelerating motor, frequency conversion control the coloring brush. Using backflow scraper design between moving, so that its adhesion on the brush coloring paint flow back, to achieve no paint is thrown off or peeled off
The brush wheel adopts quick discharge design to slide out from the track, which is convenient for cleaning and loading, greatly improving the production efficiency. Equipped with brush cleaning machine. it can quickly clean the paint and dust attached to the brush, convenient and fast. The protective cover can be turned up for convenient cleaning

Model	Double Headed Color Brush Machine	Three Heads Brush Machine
Effective working width	1300 mm	1300 mm
Effective working thickness	3-80 mm	3-80 mm
Minimum machining length	300 mm	300 mm
Feeding speed	5-20 m/min	5-20 m/min
Power transmission unit	0.75 kW frequency inverter	0.75 kW frequency inverter
Conveyor wheel specification	Ø110 x 1320 mm	Ø110 x 1320 mm
Conveyor belt specification	3150 x 1320 x 3 mm	4100 x 1320 x 3 mm
Brush wheel power set	1.5 kW x 2 frequency inverter	1.5 kW x 3 frequency inverter
Total power	3.8 kW	5.3 kW
Overall dimensions	1500 x 2200 x 1700 mm	2000 x 2200 x 1700 mm
