Logo Bowens

Rotary Clipper 8″

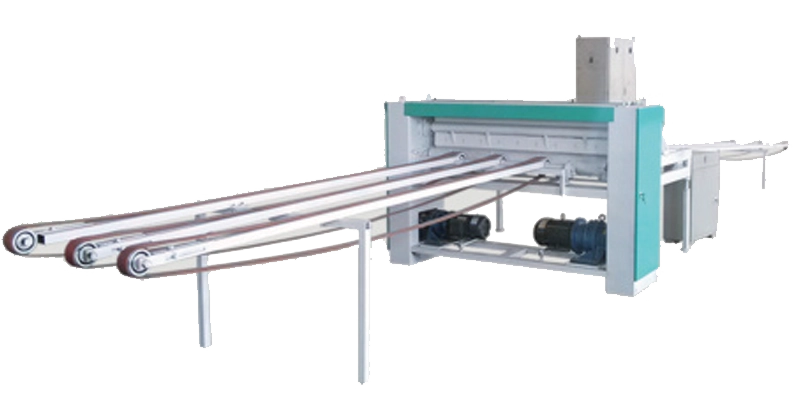

CLP-2600H - Rotary Clipper 8'

CLP-1300H | CLP-2600H

Heavy Duty Veneer Clipper (Economic Type)
Specification Rotary Clipper 8 Inch
CLP-2600H
Max veneer cutting width
2600 mm
Max veneer cutting length
2600 mm
Max veneer thickness
7-10 mm
(the thicker, the easier to cut)
Min veneer thickness
0.3 mm (it can cut the thickness of 0.3 mm, but it is better to cut the thicker)
Number of blade
1
Cutting speed
10 - 80 m/min
Diameter of rubber roller
260 mm
Total power
6.0 Kw
Size: length x width x height
10000 x 3400 x 1250 mm
Weight
2450 kg
Infeed length
6000 mm
Outfeed length
3000 mm
