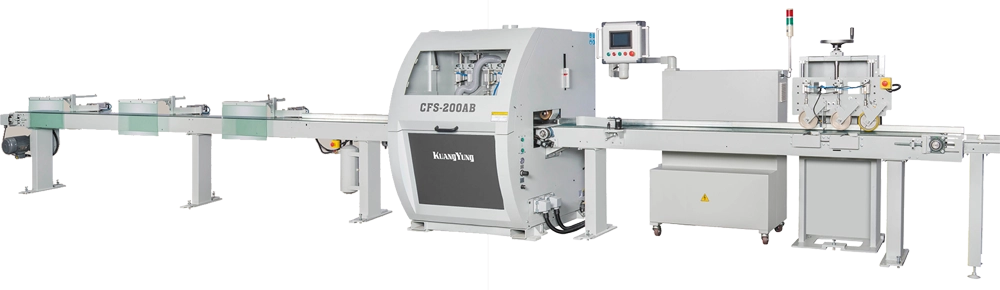

Optimizing Cut Off Saw

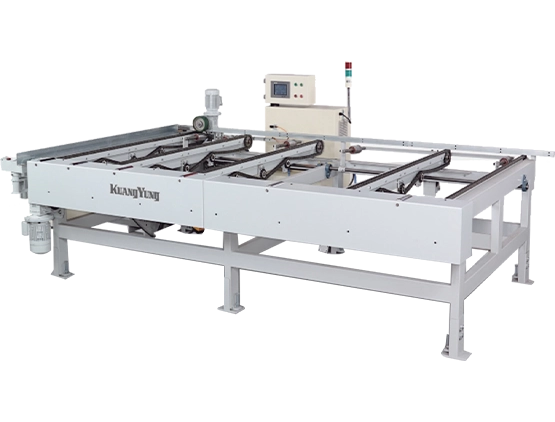

Crabwise Auto Feeding Table (Optional)

Features:

Colored touch screen operation with icon guidance. Easy recognized and operate.
The cutting function includes: a. minimum waste, b. most valuable setting.
Grading A, B with marking line available and remainder merging function to reach timber cutting optimization.
Using multiple axes controller that provides high speed calculation feature. Up to 20 sets of dimension setting available for optimized cutting.
Simulated learning function is available on the touch screen. Operator learning friendly.
Connecting with USB flash drive to output the production data to excel file is available.
Connecting with USB for software upgrading and troubleshooting is available
Using Mitsibishi servo motor drive feeding system that provides high speed reacting, high torque and comprehensive protecting feature.
Seven (7) sets top and bottom pressure roller provide the unique stability on crooked timbers cutting.
Servo motor drive cutting is available. Provide high efficiency and no compressed air consumption compare to the pneumatic cutting. (optional)

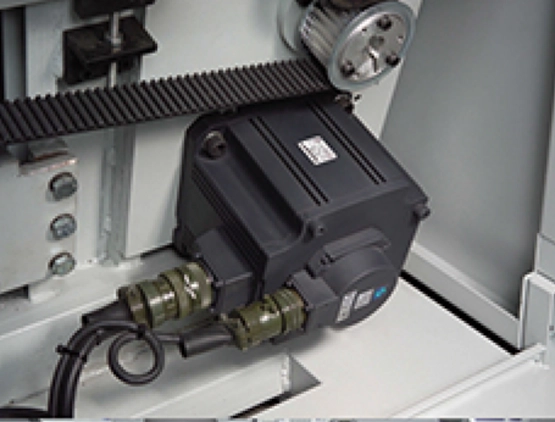

Servo Motor Device

Employs Mitsubihsi servo motor drive featuring precise calculations and high efficiency.

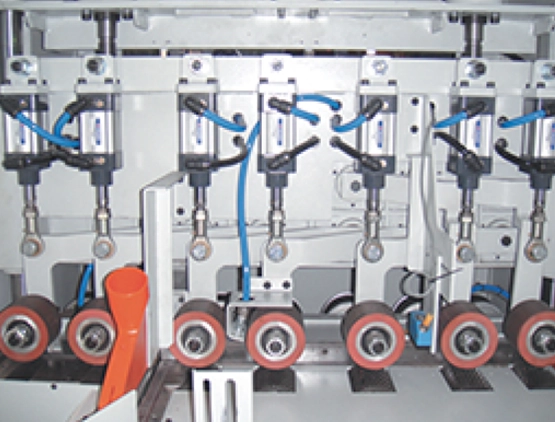

Infeed and Outfeed Rollers

5 infeed rollers and 2 outfeed rollers ensure high stability and cutting accuracy for long and heavy wood.

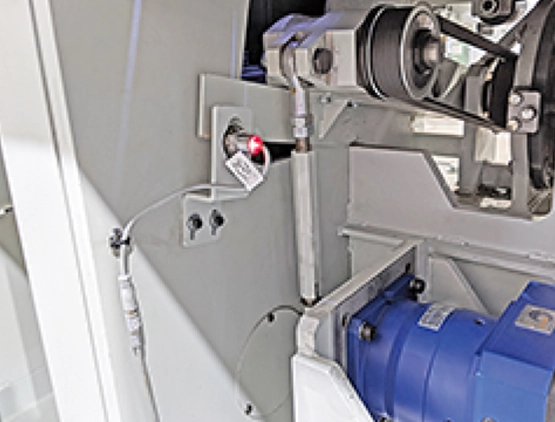

Servo Cutting Device (optional)

Max. speed 210 times/min. 15% – 25% higher efficiency than pneumatics. Reduce air compressor consuming.

Optional Equipment

1. Auto cross feeding table.
2. Automatic pushing outfeed table
*Sizes are specified by customer.

Model	CFS200AB
Saw motor	10 HP
Feed motor	5 kW (optional 7 kW)
Saw spindle speed	18" blade : 4000 rpm (50 Hz) 20", 21" blade : optional 3500 rpm (50 Hz)
Feed speed	Max. 200 m/min
Saw blade diameter	455 mm optional 505 mm / 504 mm
Saw blade bore	⌀ 40 mm

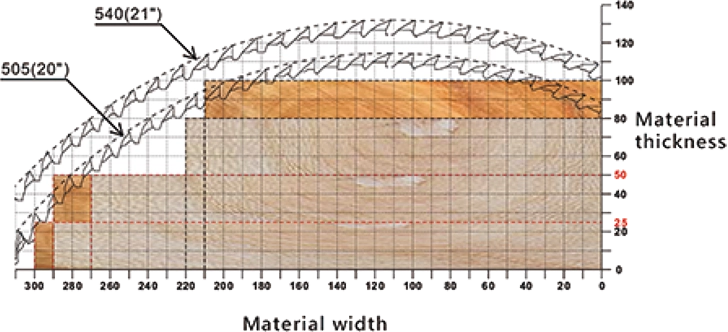

Cross section cutting	See cutting range diagram
Machine table height	900 mm
Min. raw timber size	400 x 30 x 15 mm
Dust outlet diameter	⌀ 150 mm x 2, ⌀ 100 mm x 1
