Kuang Yung

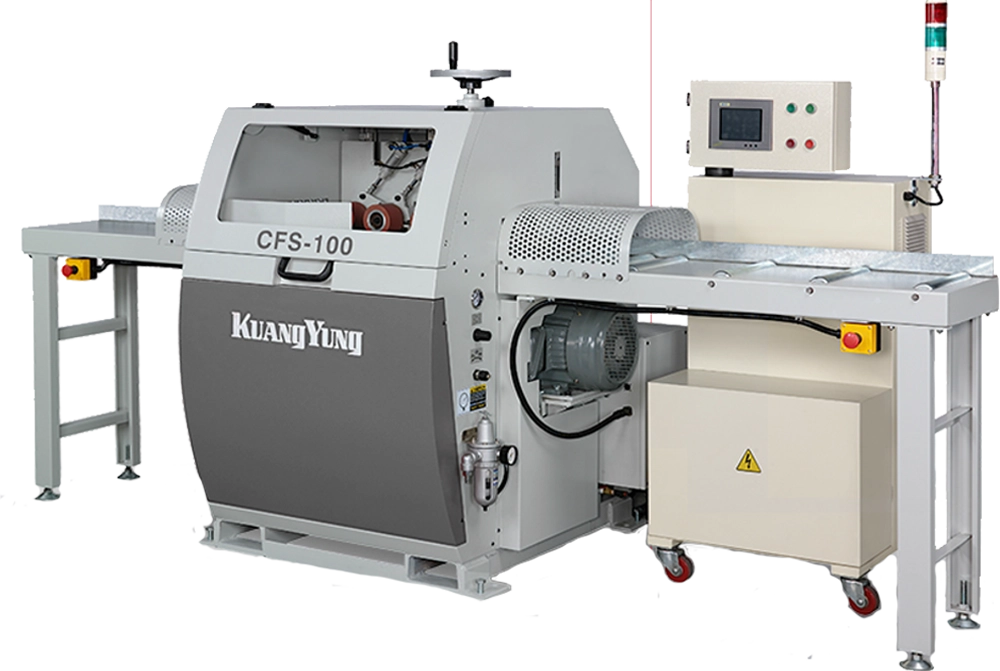

CFS-100 – Semi-Optimizing Cut Off Saw

CFS-100 Semi-Optimizing Cut Off Saw digunakan untuk material kayu finger joint. Mesin gergaji ini 3-5 kali lebih efisien dibanding dengan pengerjaan manual karena dirancang menggunakan sensor.

CFS-100

Designed for finger-jointed lumber production or wood preparation of anterior stage.

Economical, Compact, User-friendly

Feature:

  • The productivity is 3-5 times higher than a manual machine.
  • Save more than 3% of wood material for finger-jointed lumber production.
  • Comprehensive safety guards comply with CE criteria to protect operators.
  • Maximum feedrate can reach up to 80M/min.
  • The material in-feed is driven by TECO servo motor, featuring high working efficiency and accuracy

Fitur-fitur CFS-100 Semi-Optimizing Cut Off Saw

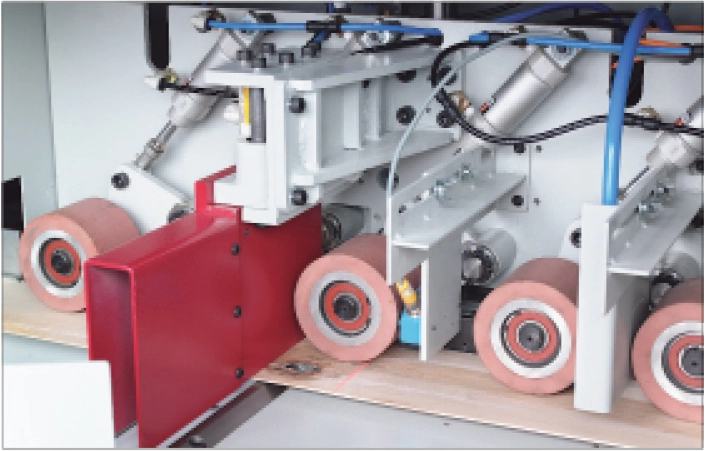

FEATURES 1

For thin-material (2mm).(Optional)

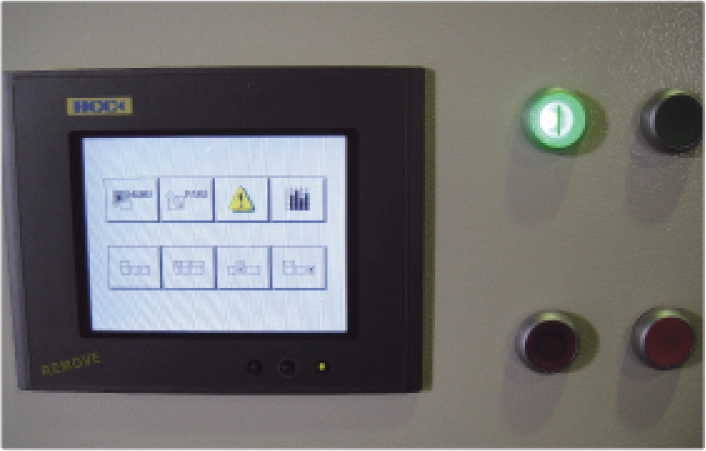

FEATURES 2

Touch-screen & graphical interface. Easy for learning and operating

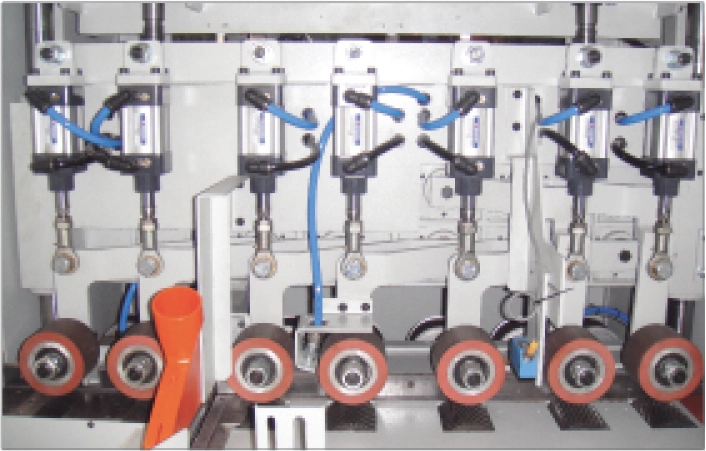

FEATURES 3

5in-feeding rollers and 2 out-feeding rollers ensure high stability and cutting accuracy for long or heavy lumber.

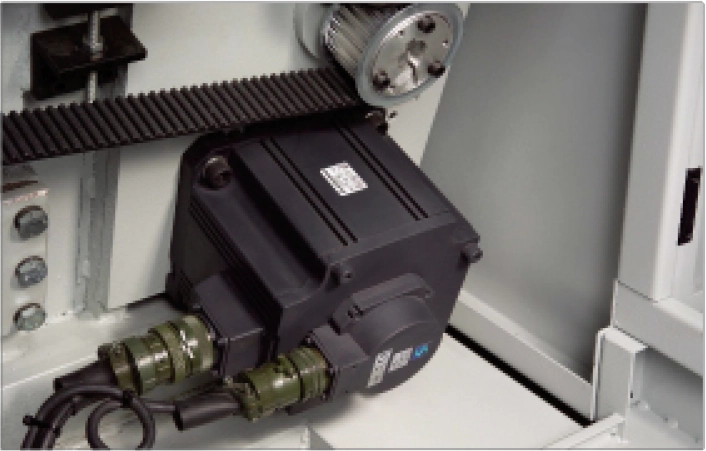

FEATURES 4

Mitsubishi high quality servo motor and driver features precise calculations and high efficiency.

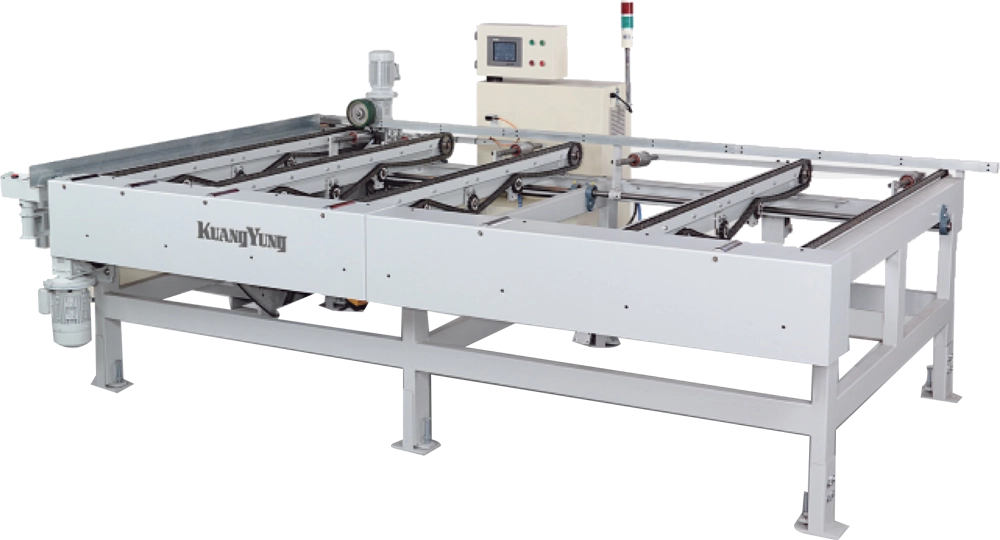

Crabwise Auto-Feeding Table (Optional)

Crabwise Auto-Feeding Table (Optional)

Dimension

Dimension

Cutting Modes

Cutting Modes 1
  1. Fixed length cutting

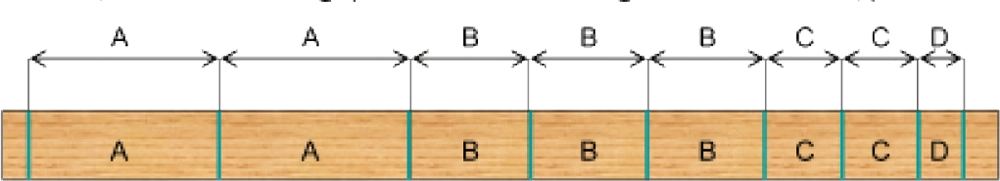

Cutting Modes 2

2. Sequential cutting (10 sets of cutting-sizes memory)

Cutting Modes 3

3. Marking lines cutting with double end trimming

Cutting Modes 4A

4. Mixed Cutting functions
A. Fixed length + marking lines

Cutting Modes 4B

B. Fixed length + marking lines + optimum residual usage

Cutting Modes 4C

C. Multiple accumulation function (CFS-200A Optional)

Spesifikasi CFS-100 Semi-Optimizing Cut Off Saw
Model
CFS-100
Saw motor
10 HP
Feed motor
2 Kw
Saw spindle speed
3400 r.p.m.
Feedrate
80 M/min
Max. circular saw dia.
455 mm (18'')
Bore of circular saw
30 mm
Bed height
900 mm
Minimum cutting length
300 mm
Maximum table load
25 kgs
Air compressed (consumption)
7-9 kg/cm 2 (160 m 3 /hr)
Diameter of dust collector inlet
ø100 mmx2
Machine weight
900 kgs
Machine dimensions (L x D x H)
1170x1210x1200 mm (w/o roller table)
  • We reserve the right to amend any of the above specifications without prior notice.



Comparison Table:

Model
Traditional machine
CFS-100
CFS-200A
Cutting speed (times/min)
45
80
150
Feedrate (M/min)
N/A
80
150
Productivity (M/8 hours)
1600
6400
8000
No. of rollers
5 pieces
7 pieces
Max. table load
N/A
25 kgs
40 kgs
Feed motor
2 Kw (TECO)
3.5 Kw (Mitsubishi)
Maximum circular saw dia.
N/A
455 mm (18'')
540 mm (21'')
Machine weight
N/A
900 kgs
1250 kgs
Material's limitation
N/A
Length under 4M is suggested
Applicable for 4M and above

Remark: “Productivity” varies on factors such as “material length”, “cutting length” and “operation conditions” etc.
