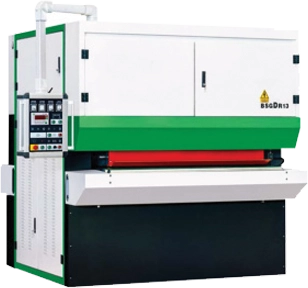

BSGDR13
Wide Belt Sander
Characteristic:
- This machine is mainly used for sanding the surface of plywood, block board, plastic board, decorative board, and so on
- The whole body adopt a box-shaped welded structure, which has enough rigidity and improve service life of the machine
- The diameter of sanding roller is more langer, the service life of the belt is more longer, it has precise dynamic balance and work smoothly
- The feeding adopts frequency conversion, feeding speed is 2 – 40 m/min production efficiency is more higher
- Simple and clear operation, easy maintenance, good safety, low failure rate, and the performance has reached the international level
- This model is a down sanding sander, which is suitable for connecting production line
Specification BSGDR13
| Model | BSGDR13 |
|---|---|
| Processing width | 40 -1300 mm |
| Processing thickness | 3 -80 mm |
| Processing length | ≥ 750 mm |
| Feeding speed | 2 - 40 m/min |
| Belt speed | 20 m/s, 20 m/s |
| Size of sanding belt | 1330 x 2800 mm |
| Total motor power | 51.25 kW |
| Working air pressure | 0.55 Mpa |
| Air speeding dust suction | 25 - 30 m/s |
| Air volume of dust suction | 8000 m3/h |
| Compressed air consumption | 0.15 m3/h |
| Dimension of the machine | 2420 x 2120 x 2340 mm |
| Weight | 7000 kg |
