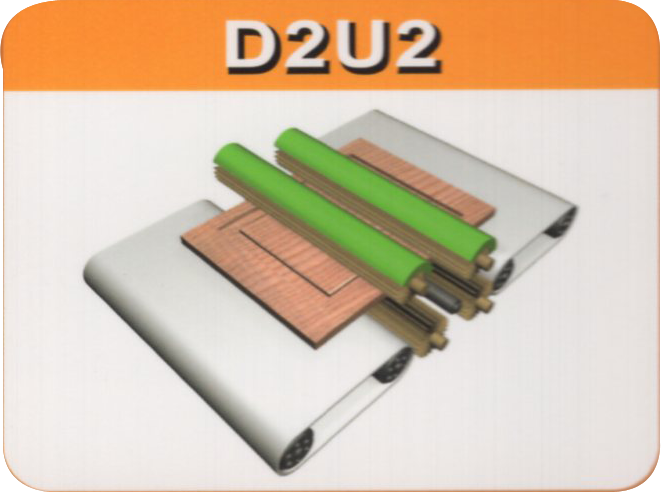

SL-1350U2D2
Product Feature
- 2 sets of upper and 2 sets of lower sanding heads both of them with oscillation function to provide more efficiency on sanding without any coffin corner.
- Electrical control by inverter which includes sanding head with variable speed.
- High quality conveyor belt for long service lifespan.
- Heavy- duty base and frame made of steel provides stability.
- Firm and suitable vacuum (optional ) to hold small workpieces properly.
- Standard oscillation system for all rollers, start and stop control with switch.
- Thickness adjusted by electrical control (optional).
- It can be used to sand cabinet doors, drawer fronts, face frames, entry doors, shutters and other irregular surface or three-dimensional parts in one process.

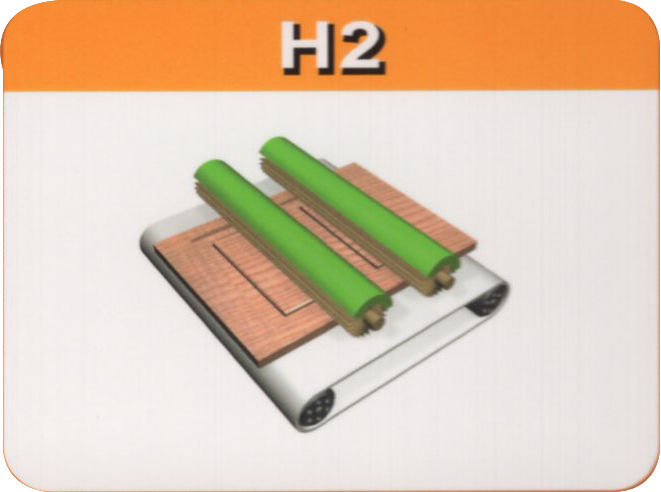

SL-1350H2
Product Feature
- 2 sets of horizontal sanding heads with oscillation function to provide more efficiency on sanding without damaging corner.
- Electrical control by inverter which includes sanding head with variable speed.
- High quality conveyor belt for long service lifespan.
- Heavy- duty base and frame made of steel provides stability.
- Firm and suitable vacuum (optional ) to hold small workpieces properly.
- Standard oscillation system for all rollers, start and stop control with switch.
- Thickness adjusted by electrical control (optional).
- It can be used to sand cabinet doors, drawer fronts, face frames, entry doors, shutters and other irregular surface or three-dimensional parts in one process.

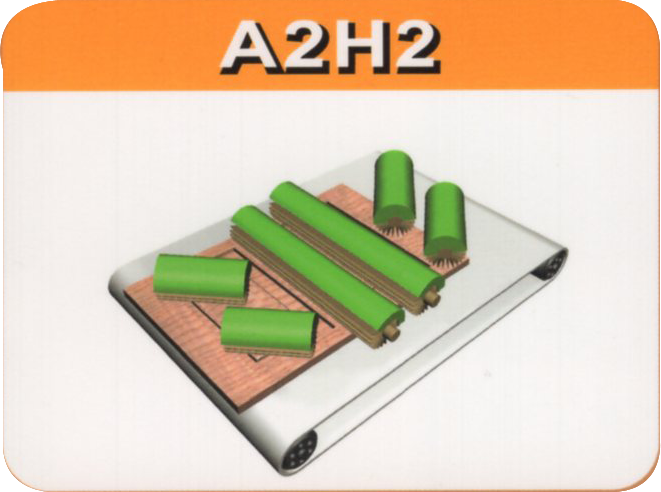

SL-1350A2H2
Product Feature
- 2 sets of horizontal and 2 sets of angle sanding heads with oscillation function to provide more efficiency on sanding without damaging corner.
- Electrical control by inverter which includes sanding head with variable speed.
- High quality conveyor belt for long service lifespan.
- Heavy- duty base and frame made of steel provides stability.
- Firm and suitable vacuum (optional ) to hold small workpieces properly.
- Standard oscillation system for all rollers, start and stop control with switch.
- Thickness adjusted by electrical control (optional).
- It can be used to sand cabinet doors, drawer fronts, face frames, entry doors, shutters and other irregular surface or three-dimensional parts in one process.
SL-600A2
Product Feature
- 2 sets of angle sanding heads with oscillation function to provide more efficiency on sanding without damaging corner.
- Electrical control by inverter which includes sanding head with variable speed.
- High quality conveyor belt for long service lifespan.
- Heavy-duty base and frame made of steel provides stability.
- Firm and suitable vacuum (optional ) to hold small workpieces properly.
- Standard oscillation system for all rollers, start and stop control with switch.
- It can be used to sand cabinet doors, drawer fronts, face frames, entry doors, shutters and other irregular surface or three-dimensional parts in one process.
SL-600H2
Product Feature
- 2 sets of horizontal sanding heads with oscillation function to provide more efficiency on sanding without damaging corner.
- Electrical control by inverter which includes sanding head with variable speed.
- High quality conveyor belt for long service lifespan.
- Heavy-duty base and frame made of steel provides stability.
- Firm and suitable vacuum (optional ) to hold small workpieces properly.
- Standard oscillation system for all rollers, start and stop control with switch.
- It can be used to sand cabinet doors, drawer fronts, face frames, entry doors, shutters and other irregular surface or three-dimensional parts in one process.

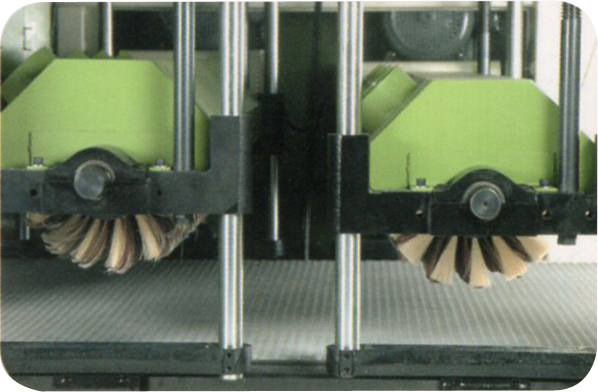

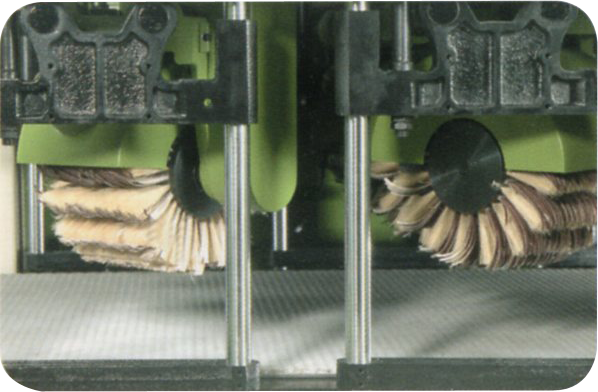

Brush Sanding Machine Feature
- Horizontal and angle sanding heads both of them with oscillation function to provide more efficiency on sanding without damaging corner
- Electrical control by inverter which includes sanding head with variable speed
- High quality conveyor belt for long service lifespan
- Heavy-duty base and frame made of steel to provide stability
- Firm and suitable vacuum (optional) to hold small workpieces properly
- Standard ascillation system for all rollers, start and stop control with switch
- Thickness adjusted by electrical control (optional)
- It can be used to sand cabinet doors, drawer fronts, face frames, entry doors, shutters and other irregular surface or three-dimensional parts in one process.
Specific Characteristic for Door Panel Brush Sander
- Sand before and after painting.
- sand the rough surface of workpiece.
Spesifikasi Brush Sanding Machine
MODEL | SL-600A2 | SL-600H2 | SL-1000A2 | SL-1000H2 | SL-1000U2D2 |
---|---|---|---|---|---|
Max. Working width | 25" (635 mm) | 25" (635 mm) | 39" (1000mm) | 39" (1000mm) | 39" (1000mm) |
Max. Working height | 5" (127mm) | 6" (152mm) | 5" (127mm) | 6" (152mm) | 6" (152mm) |
Min. work-pieces (For vacuum) | 4" (100 mm) x 6.3" (160 mm) | 4" (100 mm) x 6.3" (160 mm) | 4" (100 mm) x 6.3" (160 mm) | 4" (100 mm) x 6.3" (160 mm) | |
Min. Work-pieces Length (For Hold Down Roller) | 16" (406mm) | 16" (406mm) | 22"(560mm) |
||
Min. Work-pieces Thickness | 3/16" (5mm) | 3/16" (5mm) | 3/16" (5mm) | 3/16" (5mm) | 3/8" (10mm) (Up & Down) |
Variable Feed Speed | 50 HZ (1.5 - 9.5 M / min)60 HZ (1.8 - 11 M / min) | 50 HZ (1.5 - 9.5 M / min)60 HZ (1.8 - 11 M / min) | 50 HZ (1.5 - 9.5 M/min)60 HZ (1.8 - 11 M/min) | 50 HZ (1.5 - 9.5 M/min)60 HZ (1.8 - 11 M/min) | 50 HZ (1.5 - 9.5 M/min)60 HZ (1.8 - 11 M/min) |
Speed of sanding wheel | 200-1200 rpm | 200-1200 rpm | 200-1200 rpm | 200-1200 rpm | 200-1200 rpm |
Horizontal sanding head motor | 2 x 2 HP (1.5 KW) | 2 x 3 HP (2.2 KW) | 4x3 HP (2.2 KW) |
||
Angle sanding head motor | 2x1 HP (0.75 KW) | 4x1 HP (0.75 KW) | |||
Horizontal / Oscillation | 32 mm / 28 rpm | 32 mm / 28 rpm | 32 mm / 28 rpm |
||
Angle / Oscillation | 56 mm / 28 rpm | 56 mm / 28 rpm | |||
Conveyor motor (For hold down roller) | 1/2 HP (0.37 KW) | 1/2 HP (0.37 KW) | 1/2 HP (0.37 KW) |
||
Conveyor motor (For vacuum) | 1 HP (0.75 KW) | 1 HP (0.75 KW) | 2 HP (1.5 KW) | 2 HP (1.5 KW) | |
Moving brush head motor | 1/4 HP (0.18 KW) | 1/4 HP (0.18 KW) | 1/4 HP (0.18 KW) | 1/4 HP (0.18 KW) | 1/4 HP (0.18 KW) |
Brush diameter | 280 mm / 320 mm | 280 mm / 320 mm | 280 mm / 320 mm | 280 mm / 320 mm | 280 mm / 320 mm |
Vacuum (Optional) | 1x10 HP (7.5 KW) | 1x10 HP (7.5 KW) | 1x15 HP (11.2 KW) | 1x15 HP (11.2 KW) | |
Machine dimension (DxWxH) | 185x153x190 cm | 185x153x190 cm | 185x188x190 cm | 185x188x190 cm | 185x188x190 cm |
Packing dimension (DxWxH) | 207x173x220 cm | 207x173x220 cm | 207x210x220 cm | 207x210x220 cm | 207x210x220 cm |
Net weight (Vacuum / hold down roller) | 1100 kgs / --- | 950 kgs / 800 kgs | 1300 kgs / --- | 1250 kgs / 1000 kgs | --- / 1480 kgs |
Gross weight (Vacuum / hold down roller) | 1400 kgs / --- | 1250 kgs / 1100 kgs | 1600 kgs / --- | 1600 kgs / 1350 kgs | --- / 1880 kgs |

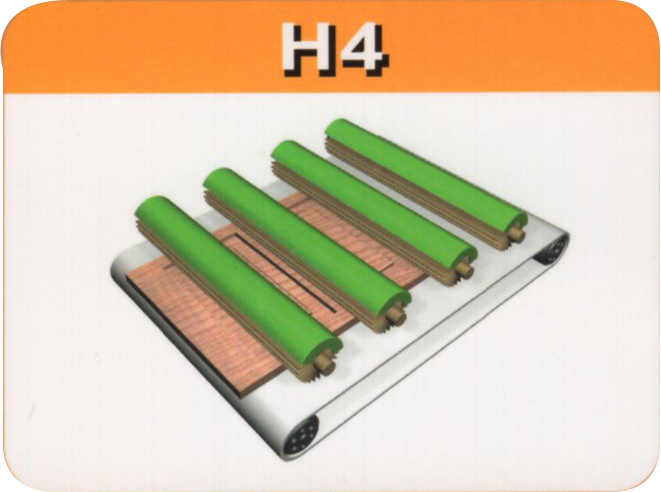

MODEL | SL-1350A2 | SL-1350H2 | SL-1350H4 | SL-1350A2H2 | SL-1350U2D2 |
---|---|---|---|---|---|
Max. Working width | 53" (1350mm) | 53" (1350mm) | 53" (1350mm) | 53" (1350mm) | 53" (1350mm) |
Max. Working height | 5" (127mm) | 6" (152mm) | 6" (152mm) | 5" (127mm) | 6" (152mm) |
Min. work-pieces (For vacuum) | 4" (100mm) x 6.3" (160 mm) | 4" (100mm) x 6.3" (160 mm) | 4" (100mm) x 6.3" (160 mm) | 4" (100mm) x 6.3" (160 mm) | |
Min. Work-pieces Length (For Hold Down Roller) | 16" (406 mm) | 16" (406 mm) | 22"(560mm) |
||
Min. Work-pieces Thickness | 3/16" (5mm) | 3/16" (5 mm) | 3/16" (5 mm) | 3/16" (5 mm) | 3/8" (10mm) (Up & Down) |
Variable Feed Speed | 50 HZ (1.5 - 9.5 M/min)60 HZ (1.8 - 11 M/min) | 50 HZ (1.5 - 9.5 M/min)60 HZ (1.8 - 11 M/min) | 50 HZ (1.5 - 9.5 M/min)60 HZ (1.8 - 11 M/min) | 50 HZ (1.5 - 9.5 M/min)60 HZ (1.8 - 11 M/min) | 50 HZ (1.5 - 9.5 M/min)60 HZ (1.8 - 11 M/min) |
Speed of sanding wheel | 200-1200 rpm | 200-1200 rpm | 200-1200 rpm | 200-1200 rpm | 200-1200 rpm |
Horizontal sanding head motor | 2 x 3 HP (2.2 KW) | 4x3 HP (2.2 KW) | 2 x 3 HP (2.2 KW) | 4x3 HP (2.2 KW) |
|
Angle sanding head motor | 4x1,5 HP (1.12 KW) | 4x1,5 HP (1.12 KW) | |||
Horizontal / Oscillation | 32 mm / 28 rpm | 32 mm / 28 rpm | 32 mm / 28 rpm | 32 mm / 28 rpm |
|
Angle / Oscillation | 56 mm / 28 rpm | 56 mm / 28 rpm | |||
Conveyor motor (For hold down roller) | 1/2 HP (0.37 KW) | 1 HP (0.75 KW) | 1/2 HP (0.37 KW) |
||
Conveyor motor (For vacuum) | 2 HP (1.5 KW) | 2 HP (1.5 KW) | 2 HP (1.5 KW) | 3 HP (2.2 KW) | |
Moving brush head motor | 1/4 HP (0.18 KW) | 1/4 HP (0.18 KW) | 1/4 HP (0.18 KW) | 1/4 HP (0.18 KW) | 1/4 HP (0.18 KW) |
Brush diameter | 280 mm / 320 mm | 280 mm / 320 mm | 280 mm / 320 mm | 280 mm / 320 mm | 280 mm / 320 mm |
Vacuum (Optional) | 1x15 HP (11.2 KW) | 1x15 HP (11.2 KW) | 2x15 HP (11.2 KW) | 2x15 HP (11.2 KW) | |
Machine dimension (DxWxH) | 185x223x190 cm | 185x223x190 cm | 284x223x200 cm | 284x223x200 cm | 200x223x190 cm |
Packing dimension (DxWxH) | 210x230x220 cm | 210x230x220 cm | 300x230x225 cm | 300x230x225 cm | 210x230x220 cm |
Net weight (Vacuum / hold down roller) | 1450 kgs / --- | 1350 kgs / 1100 kgs | 3000 kgs / 2700 kgs | 3125 kgs / --- | --- / 1680 kgs |
Gross weight (Vacuum / hold down roller) | 1910 kgs / --- | 1760 kgs / 1510 kgs | 3480 kgs / 3180 kgs | 3600 kgs / --- | --- / 2080 kgs |
