BM-302 / 302A – Line Boring Machine

BM-302 Line Boring Machine / BM-302A Pneumatic Line Boring Machine dengan motor 2 (atau 3) HP. Dapat digunakan untuk bor engsel bila diperlukan.
Boring Head
Fixed boring heads No. 1-4 as standard:

Boring Head 1

Adjustable boring heads, No. 5 (two hole) and No.6 (three hole) as optional.
The boring bit centers are infinitely adjustable on both heads:

Boring Head 2

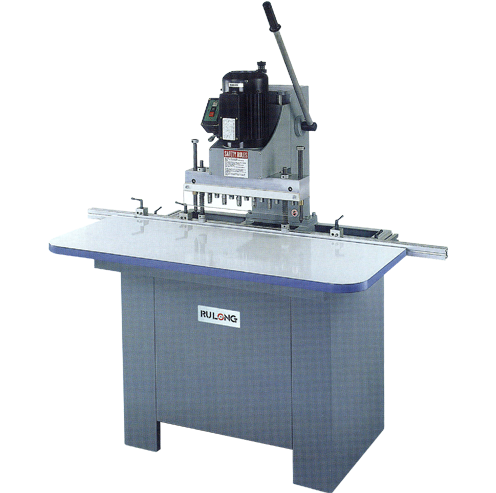

BM-302 – Line Boring Machine
BM-302 – Line Boring Machine

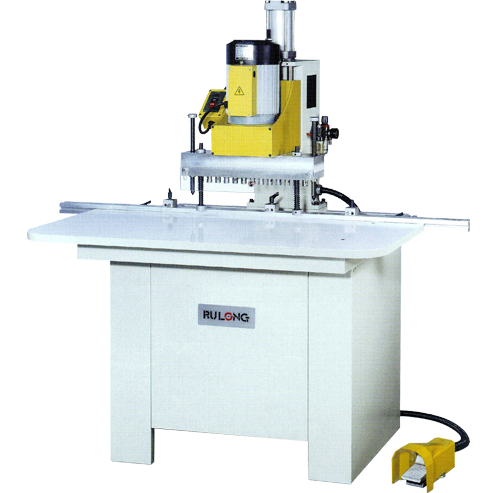

BM-302A – Pneumatic Line Boring Machine
BM-302A – Pneumatic Line Boring Machine
Specifications
BM -302 / 302A
Motor (HP)
2 (Std.), 3 (opt.)
Spindle speed (RPM)
2860 (50Hz), 3450 (60Hz)
Number of drilling spindles
13
Distance between spindles (mm)
32
Stroke capacity (mm)
60
Throat capacity (mm)
200
Table size (mm)
1245 x 485
Overall size (mm)
1520 x 965 x 1730
Packing size (mm)
1360 x 920 x 980
Net weight (kg)
175
Gross weight (kg)
225

BM-302 / 302A

  • A powerful 2 (or 3) HP motor.
  • Fence assembly with 4 stops
  • Fully enclosed steel stand
  • Max. throat capacity up to 200 mm
  • Boring heads for hinges with pitch according to demand (optional, see the drawing below).

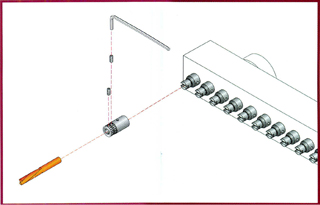

Quick chuck system is available on request
Quick chuck system is available on request
