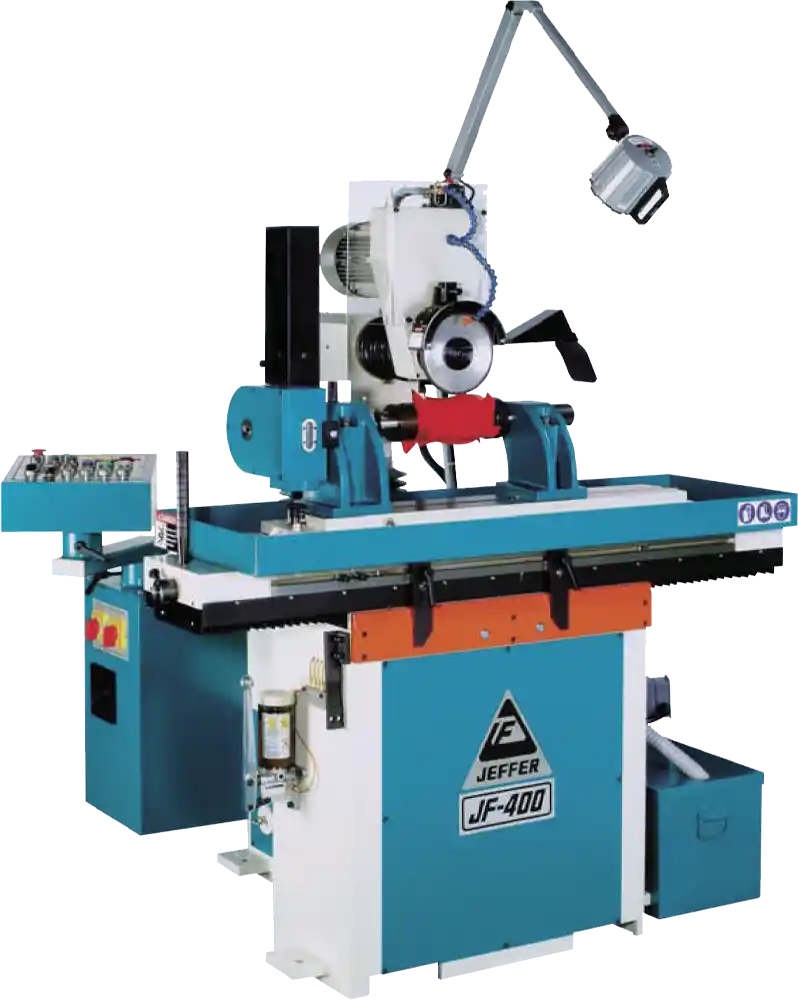

 JF-400 – Automatic Tool Grinder

JF-400 - Automatic Tool Grinder

 JF-400

  • This is a fully automatic controlled machine
  • It is a superior machine, which is easy to operate and can save manpower. Grinding just needs setting once.
  • It could be used to grind carbide cutter, route bits and finger jointer cutter precisely.
MODEL
JF-400
Grinding capacityCarbide cutters (dia. X W)
Ø300mm x 250mm
Finger joint cutter
Ø160/Ø210/Ø250mm
Bore
Ø50mm
Length of set
300mm (Finger joint cutter)
Router bits shank
Ø3-19mm
Work table (max)
400mm
Grinding wheel size
(diameter x bore)
Ø175 xØ20mm
Speed of grinding wheel
2800R.P.M. (50 Hz)
3000R.P.M. (60 Hz)
MotorGrinding wheel
2 HP
Cooling system
1/8 HP
Automatic table
Hydraulic motor 1 HP
Dividing head servo
400 W
Grinding wheel up & down
1/3 HP
Machine size (LxWxH)
1400x1120x1730mm
Packing size (LxWxH)
1600x1440x1900mm
Net weight
1050 kgs
Gross weight
1300 kgs
JF-400 – Automatic Tool Grinder 1

Optional attachment : Helical grinding attachment
Taiwan Patent : 346475

JF-400 – Automatic Tool Grinder 2

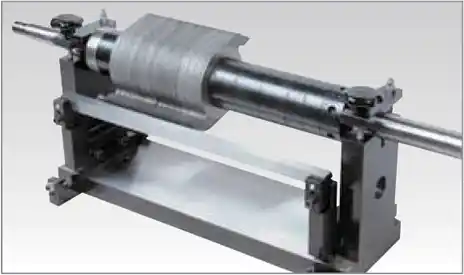

Setting device with one arbor for finger jointer cutter

JF-400 – Automatic Tool Grinder 3

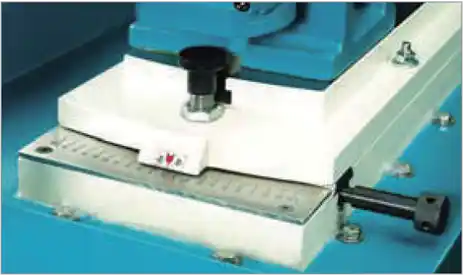

Rotation angle of worktable
