Model Code Letter:
N : Normal
U : Cross
O : Oscillating
W : Wire
F : Fiber
E : Edge
Disc Unit (D)
Spiral Wheel (Special Request)
Straight / Normal Wheel (N)

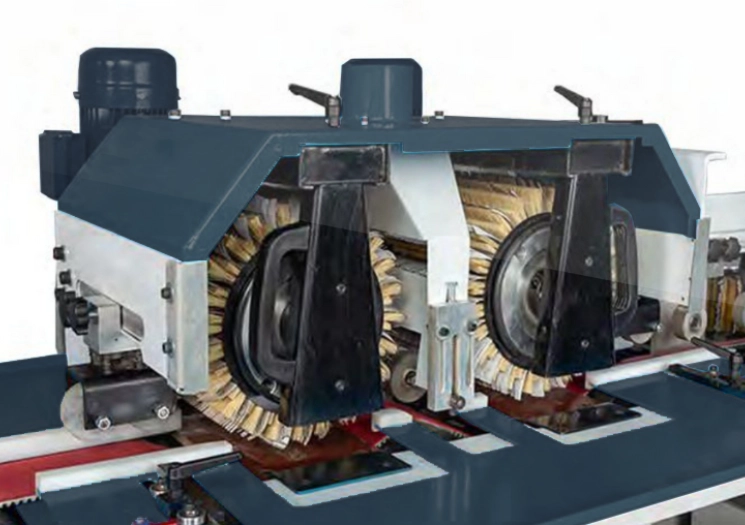

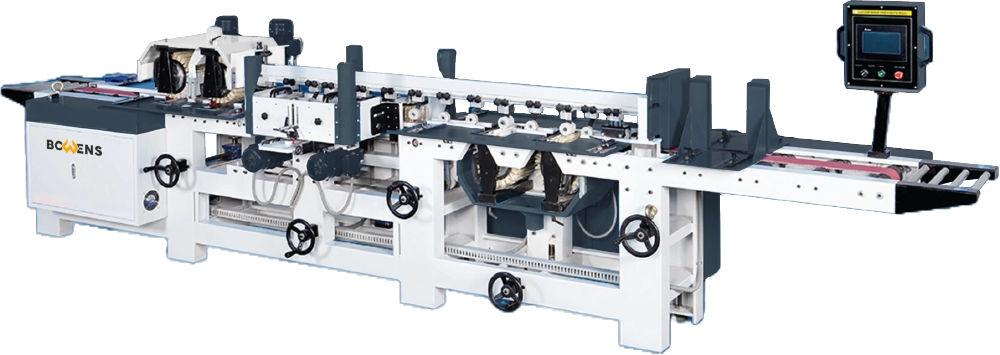

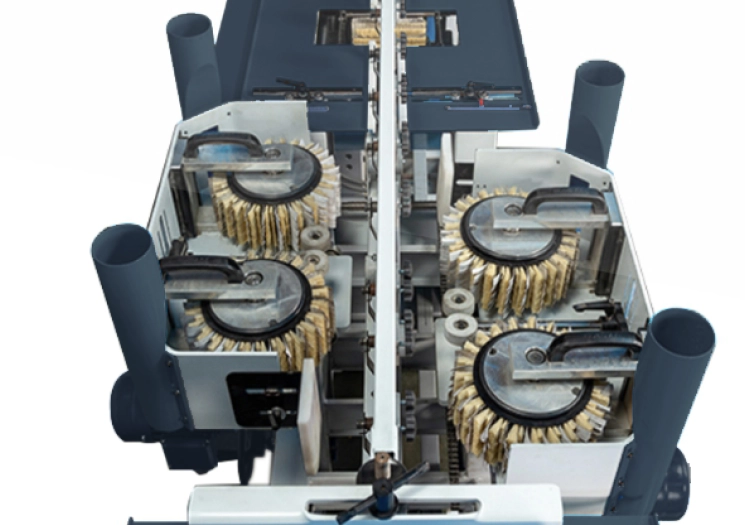

4 Side 8 Spindles Brush Sanding Machine
Outstanding Features Of 4 Side 8 Spindles Brush Sanding Machine
4 side 8 spindles brush sanding machine specializes in brush sanding straight and uniform bars. Appropriate in sanding before and after painting
The most outstanding features of the machine is that able to sand 4 sides of wood workpieces at the same time, cleaning 100% of wood hair/fiber to help the surface smooth and polished. The machine is design with the adjustable system which is independence to adjust among 4 sides
Features of the machine:
- Sanding is 1-sided, 2-sided, 3-sided or 4-sided wood at the same time
- Suitable for sanding all parts of bar and regular section, the surface of wood is not warped
- Suitable for discharging paint and scrubbing wood surfaces
- Customize rough wheel speed, conveyor speed by inverter via HDMI touch screen
- Customizing the height of the roughening axes, the visme crankshaft has a clock that display the correct mechanical number.
- Quickly adjust the machine when changing product specifications.
Specification 4 Sides 8 Spindles
| Model | 4 side 8 spindles |
|---|---|
| Operating voltage | 3 phase - 380V +- 5%/50Hz |
| Working thickness | 10 - 80 mm |
| Working width | 50 - 190 mm |
| Minimum working length | 370 mm |
| Speed conveyor | 6.5 - 20 m/min |
| Working table height | 880 - 990 mm |
| Sanding speed | 100 - 400 rpm |
| Power of brush motor | 8 x 0.37 kW |
| Dust extraction hood | 6 x ⌀90 mm |
| Air volume / Dust extraction | 3847 m3/h |
| Machine size (L x W x H) | 5695 x 1100 x 1550 |
| Machine weight | 1000 kg |
| Total power | 4.43 kW |
