3M Roller Conveyor
The machine is suitable for the transfer of light weight small workpiece and short material such as board and wood floor, the minimum processing length is 300 mm.
- The main frame is assembled by 40 x 160 series of high strength industrial aluminium profiles and 3T cold plate welded underframe
- The machine is made of steel pipe, and the surface of the pipe is electroplated
- The transmission adopts aluminum alloy shell gear reduction motor power 0.75 kW and a frequency converter to adjust the speed
- The machine adopts double chain gear, with light operation, smooth delivery of goods, simple roller transport structure, high reliabillity, easy to use and maintenance

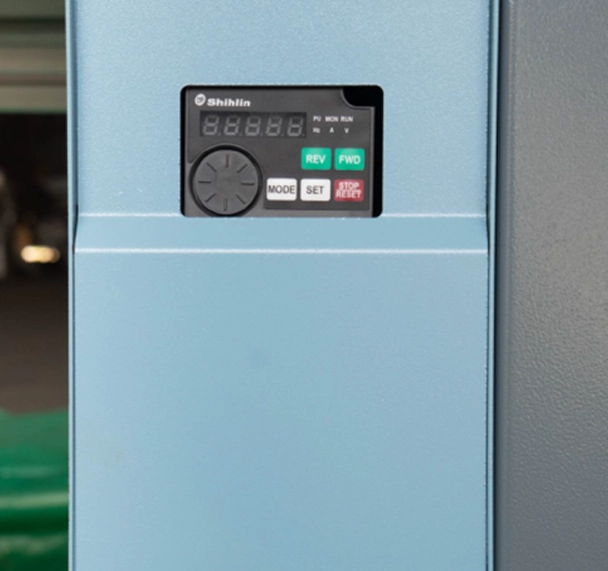

Frequency converter

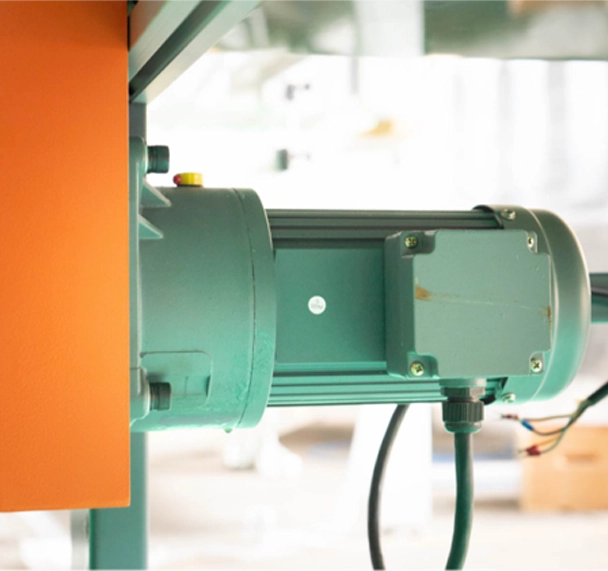

Transmission motor
Specification 3M Roller Conveyor
| Model | 600# | 750# | 900# | 1000# | 1300# |
|---|---|---|---|---|---|
| Effective working width | 600 mm | 750 mm | 900 mm | 1000 mm | 1300 mm |
| Minimum machining length | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Feeding speed | 5-20 m/min | 5-20 m/min | 5-20 m/min | 5-20 m/min | 5-20 m/min |
| Power transmission unit | 0.75 kW Inverter | 0.75 kW Inverter | 0.75 kW Inverter | 0.75 kW Inverter | 0.75 kW frequency inverter |
| Roller specification | φ60 x 680 mm | φ60 x 830 mm | φ60 x 980 mm | φ60 x 1080 mm | ⌀ 60 x 1380 mm |
| Total power | 0.75 kW | 0.75 kW | 0.75 kW | 0.75 kW | 0.75 kW |
| Overall dimensions | 3000 x 800 x 800 mm | 3000 x 950 x 800 mm | 3000 x 1100 x 800 mm | 3000 x 1500 x 800 mm | 3000 x 1500 x 800 mm |

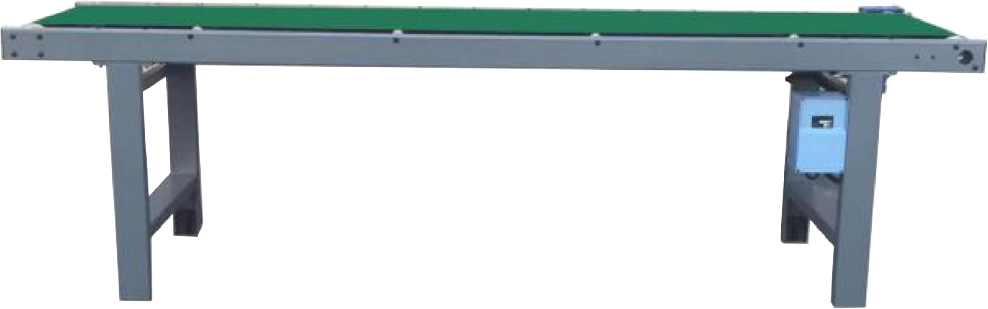

3M Belt Conveyor
This machine is suitable for conveying small, light, and short material, such as plate and wood floor
- The main frame is assembled from 50 x 100 specifications of high strength industrial square tubes and a welded bottom frame of square tubes. Conveyor belt adopts flat series with a thickness of 2 mm. Adopts aluminum alloy shell NRV series reduction electric unit, power 0.4 kW, and frequency converter to adjust the speed
- Driving wheel bearing adopts outer spherical self-centering ball with seat and passive wheel bearing adopts self-aligning bearing

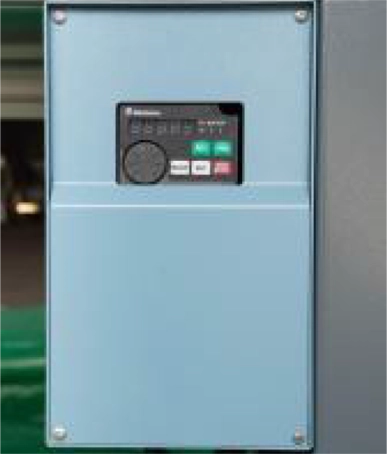

Frequency converter

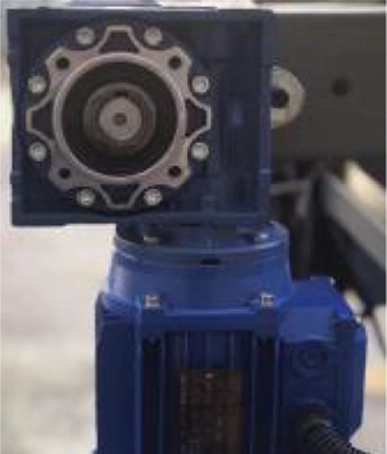

Transmission motor
Specification 3M Belt Conveyor
| Model | 600# | 750# | 900# | 1000# | 1300# |
|---|---|---|---|---|---|
| Effective working width | 600 mm | 750 mm | 900 mm | 1000 mm | 1300 mm |
| Minimum machining length | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Feeding speed | 5-20 m/min | 5-20 m/min | 5-20 m/min | 5-20 m/min | 5-20 m/min |
| Power transmission unit | 0.4 kW Inverter | 0.4 kW Inverter | 0.4 kW Inverter | 0.4 kW Inverter | 0.4 kW frequency inverter |
| Specification of conveyor | φ110 x 620 mm | φ110 x 770 mm | φ110 x 920 mm | φ110 x 1020 mm | Ø110 x 1320 mm |
| Conveyor belt specification | 6060 x 620 x 2 mm | 6060 x 770 x 2 mm | 6060 x 920 x 2 mm | 6060 x 1020 x 2 mm | 6060 x 1320 x 2 mm |
| Total power | 0.4 kW | 0.4 kW | 0.4 kW | 0.4 kW | 0.4 kW frequency inverter |
| Overall dimensions | 3000 x 950 x 800 mm | 3000 x 1100 x 800 mm | 3000 x 1250 x 800 mm | 3000 x 1350 x 800 mm | 3000 x 1650 x 800 mm |
