BG183A-12+2
3 Decks Mesh Belt Dryer 12HS + 2CS

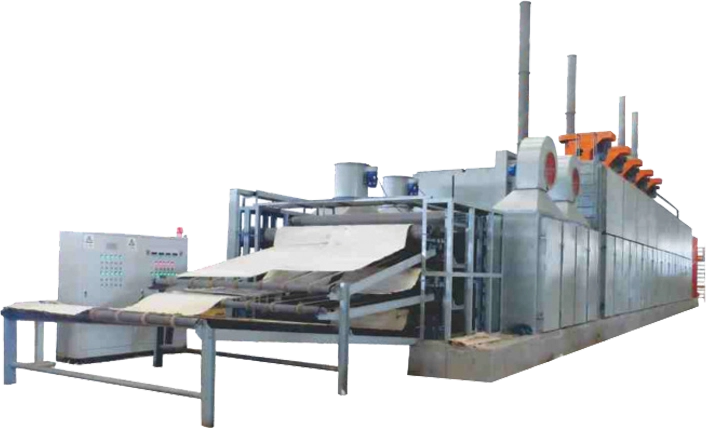

BG183A-8+1
3 Decks Mesh Belt Dryer 8HS + 1CS
Usage : This machine is a main equipment to produce plywood. Normally used to dry veneers.
| Model | BG183A-8+1 | BG183A-12+1 |
|---|---|---|
| Working width | 2650 mm | 2650 mm |
| Deck layers | 3 | 3 |
| Heating room length | 16000 mm | 24000 mm |
| Cooling room | 2000 mm | 4000 mm |
| Veneer density | - 590 kg/m3 | - 590 kg/m3 |
| Veneer thickness | 0.5-1.7 mm | 0.5-1.7 mm |
| Initial moisture content | 65% | 65% |
| Final moisture content | 10 +- 2% | 10 +- 2% |
| Load ratio | 80% | 80% |
| Drying capacity | 3 m3/h | 4.7 m3/h |
| Transfer speed | 4-40 m/min | 4-40 m/min |
| Steam consumption | 2600 kg/h | 4000 kg/h |
| Steam pressure | 0.6-1.2 Mpa | 0.6-1.2 Mpa |
| Steam drying temperature | 140°-170°C | 140°-170°C |
| Thermal oil boiler | 1560000 kcal | 2400000 kcal |
| Oil drying temperature | 160°-190°C | 160°-190°C |
| Galvanized mesh hole width | 25 x 35 mm | 25 x 35 mm |
| Total power | 107 kW | 168.5 kW |
| Transmission power | 4 x 3 kW | 7.5 x 3 kW |
| Heater fan power | 11 x 8 kW | 11 x 12 kW |
| Dimensions (L x W x H) | 4 + 3 kW | 4 x 2 + 3 x 2 kW |
| Weight | 24070 x 5150 x 4460 mm | 35870 x 5150 x 4460 mm |
| 61000 kg | 88000 kg |
