BG183-8+1

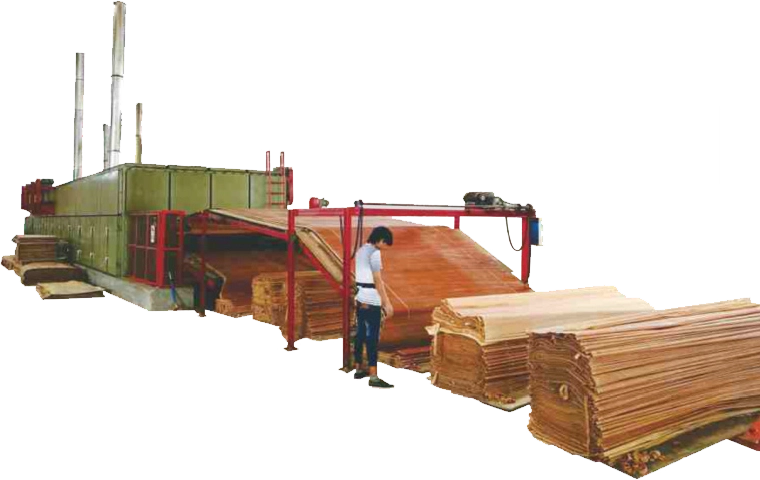

2 Decks Mesh Belt Dryer 8HS + 1CS
BG183-12+2
2 Decks Mesh Belt Dryer 12HS + 2CS
Usage :
- This veneer dryer is widely used to dry veneers in the production of plywood. It is one of the main equipments in the plywood production line
Specification 2 Decks Mesh Belt Dryer
| Model | BG183-8+1 | BG183-12+2 |
|---|---|---|
| Working width | 2650 mm | 2650 mm |
| Deck layers | 2 | 2 |
| Heating room length | 16000 mm | 24000 mm |
| Cooling room | 2000 mm | 2000 mm |
| Veneer density | - 590 kg/m3 | - 590 kg/m3 |
| Veneer thickness | 0.5-1.7 mm | 0.5-1.7 mm |
| Initial moisture content | 65% | 65% |
| Final moisture content | 10 +- 2% | 10 +- 2% |
| Load ratio | 80% | 80% |
| Drying capacity | 2 m3/h | 3 m3/h |
| Veneer delivery speed | 3-30 m/min | 3-30 m/min |
| Steam consumption | 1800 kg/h | 2600 kg/h |
| Steam pressure | 0.6-1.2 Mpa | 0.6-1.2 Mpa |
| Steam drying temperature | 130°-160°C | 130°-160°C |
| Thermal oil boiler | 1080000 kcal | - |
| Oil drying temperature | 160°-190°C | - |
| Galvanized mesh hole width | 25 x 35 mm | 25 x 35 mm |
| Total power | 73.2 kW | 107.2 kW |
| Transmission power | 5.5 x 2 kW | 7.5 x 2 kW |
| Heating fan motor | 7.5 x 9 kW | 7.5 x 12 kW |
| Cooling fan motor | 2.2 kW | 2.2 kW |
| Dimensions (L x W x H) | 23300 x 4330 x 2900 m | 33080 x 4330 x 2900 m |
| Weight | 34000 kg | 49000 kg |
