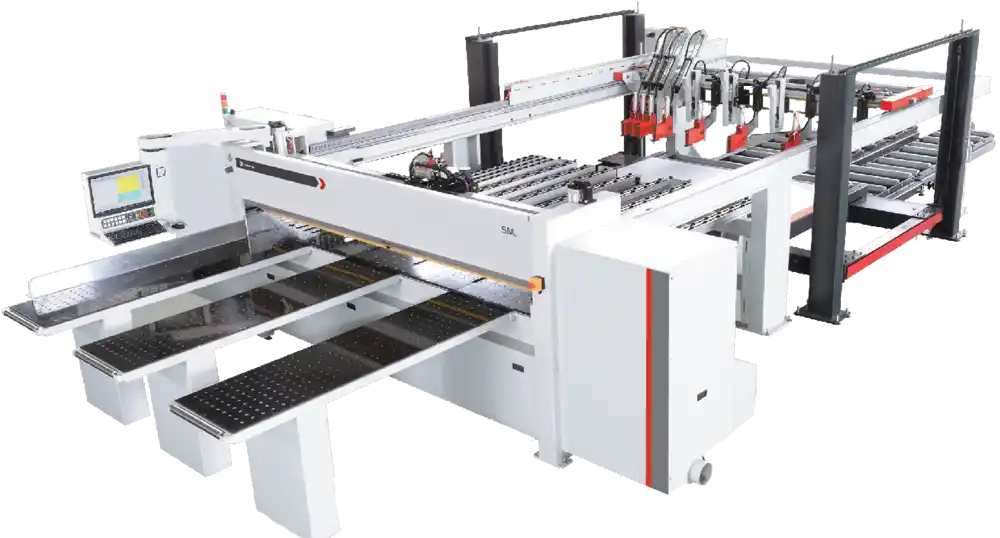

TPS-SNL – Air Floating Computer Panel Saw

TPS-10SNL (3200mm cutting length) / TPS-12SNL (3800mm cutting length)

TPS-SNL - Air Floating Computer Panel Saw

On The Cutting Edge of Tomorrow Today

The All New SNL Series
The TPS-PCL series of Panel Saws come equipped with PC Computer Control standard combined with specially designed software to enhance versatility and maximum operational convenience. The LCD screen and outstanding software make the control system easy to understand, learn and operate. Powerful computer functions include editing, operation control, machining motion flow display, trouble indication and motion monitoring.

Micro-feed Linear detection system

Micro-Feed Linear Detection System

During micro-feed system start up, the leveler advances to the panel stack position detector one the lifting table and a micro-feed material probe descends to the panel surface. During ascent of the lifting table, the magnetic scale automatically detects and sets material height, hydraulics stop vertical progress of the stack and the panel advances to the cutting position.

Quadruple column level lifting table

Quadruple column level lifting table

Features 5 HP hydraulic motor with 6 tons load capacity, quick lifting, stable, automatic or manual control of horizontal ballscrew motion.

Arranger

Arranger

Arranger panels, when pushing panels to cutting area.

TPS-SNL feature 4
  • Saw carriage travels on single rail
  • machine body employs honeycomb structure to prevent distortion and deformation
  • Guide rail made of bearing steel. After high frequency treatment, guide rail OD undergoes two precision grindings and chrome plating to ensure long term wear resistance.

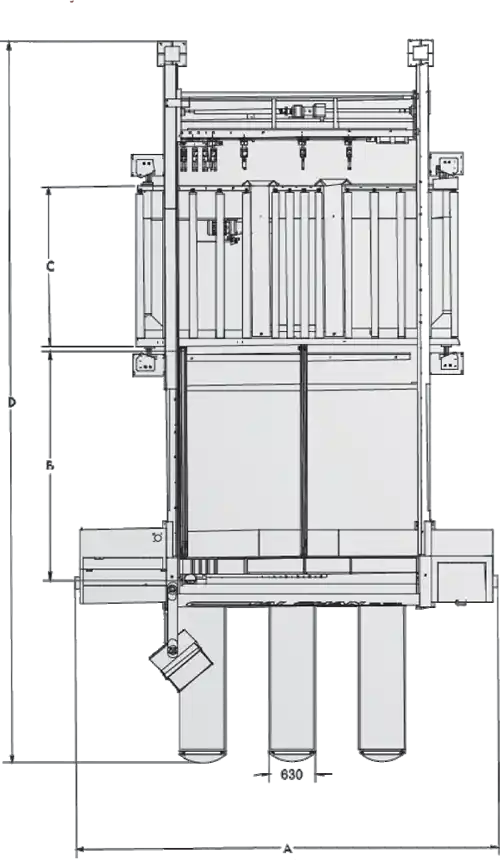

TPS-SNL
A
B
C
D
10' - 3250
5795
3150
2100
9985
12' - 3850
6395
3750
2300
10585
Spesifikasi TPS-SNL – Air Floating Computer Panel Saw
MODEL
10SNL
12SNL
CAPACITYMaximum cutting length
3200 mm
3800 mm
Maximum cutting depth
100 mm (Max. 120 mm)
MAIN SAWBLADEMain blade diameter
Ø405 mm (Max. Ø455 mm)
Arbor diameter
Ø60 mm
Main blade speed
3910 RPM
SCORING SAWBLADEScoring blade diameter
Ø180 mm
Arbor diameter
Ø45 mm
Scoring blade speed
5100 RPM
SAW CARRIAGEFeed speed
100 M/min
Return speed
120 M/min
MOTORMain sawblade motor
20 HP (25 HP option)
Scoring sawblade motor
3 HP
Saw carriage drive motor
1 KW (AC servo motor)
High pressure blower motor
5 HP
Pusher drive motor
1 KW (AC servo motor)
LIFTING TABLEHydraulic motor
5 HP
Horizontal motion motor
1 HP (option)
Max. loading capacity
6 tons
OTHERSPusher feed speed
up to 80 M/min
Working air pressure
7 kg/cm2
Table height from floor
1020 mm
Net weight
7600 kg
8100 kg
Gross weight
8950 kg
9450 kg

All specifications, dimensions and design characteristics are subject to change without notice
