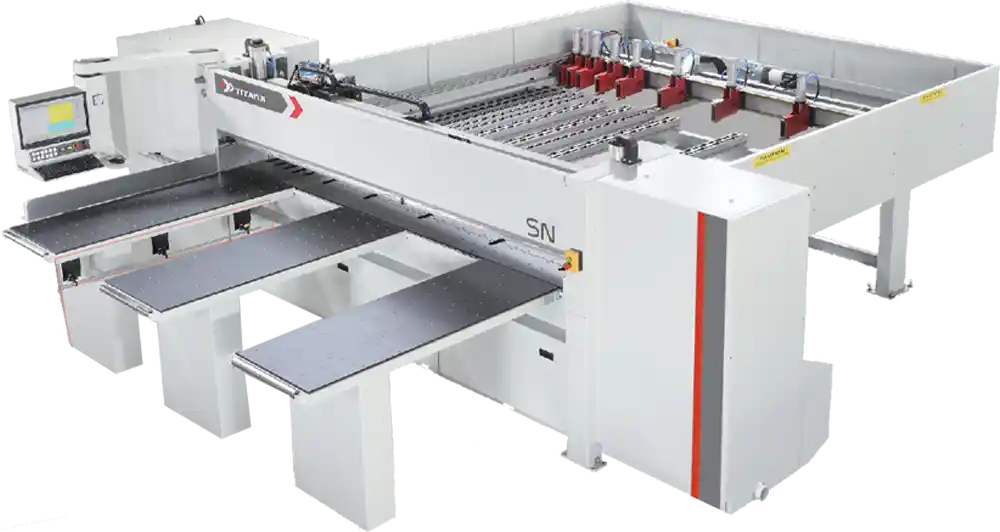

TPS-SN – Air Floating Computer Panel Saw

TPS-10SN (3200mm cutting length) / TPS-12SN (3800mm cutting length)

TPS-SN - Air Floating Computer Panel Saw

On The Cutting Edge of Tomorrow Today

The All New SN Series

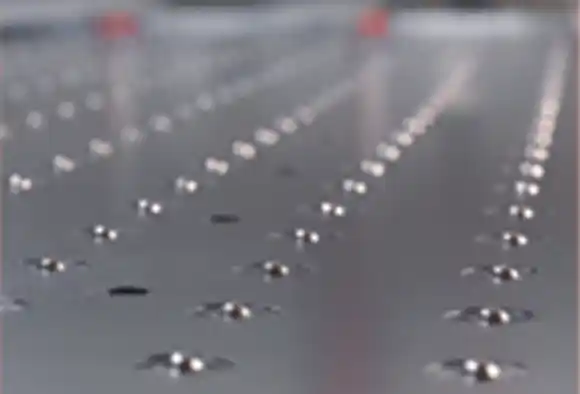

Tai Chan SN series air floating computer panel saw is designed to prevent panel scratching on surface and combined with PC operating optimizing functions.

PC Operating Controller (option)

PC Operating Controller (option)

  • Industrial grade computer
  • 19″ LCD colorful screen
  • Optimisation Function
  • Simulation function
  • Barcode printer available (option)
  • Officeonline connecting available (option)

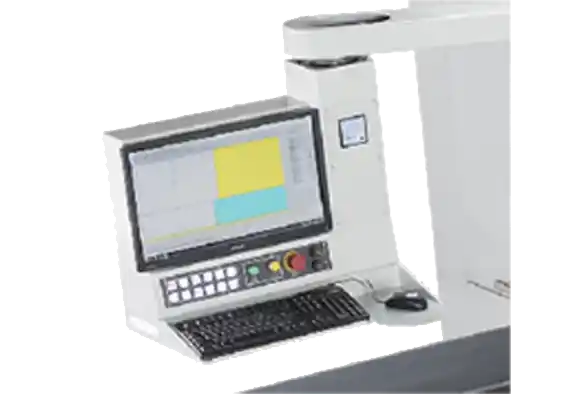

Japan Imported 10″ TFT Colorful Touch Screen

Japan Imported 10″ TFT Colorful Touch Screen

  • The computer features self-diagnostic function
  • Chinese/English display conversion for increased flexibility.
  • Size error can be compensated by the machine home position.

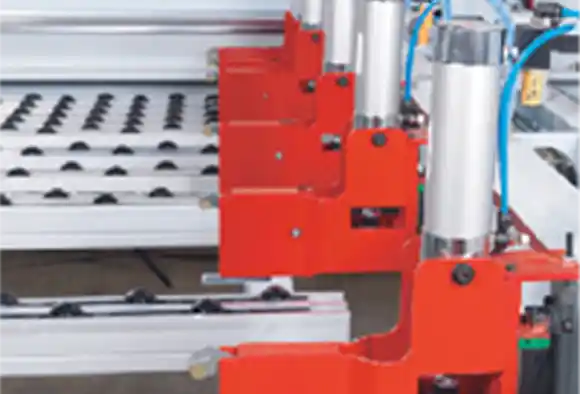

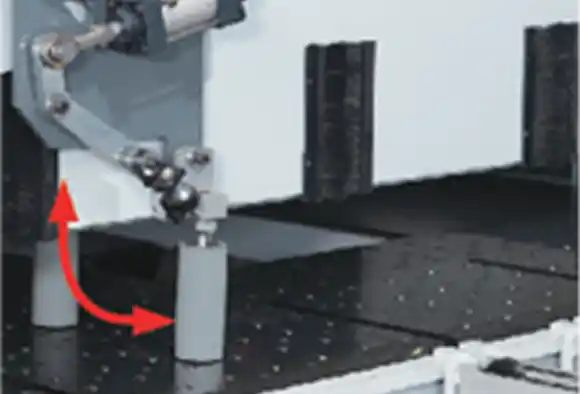

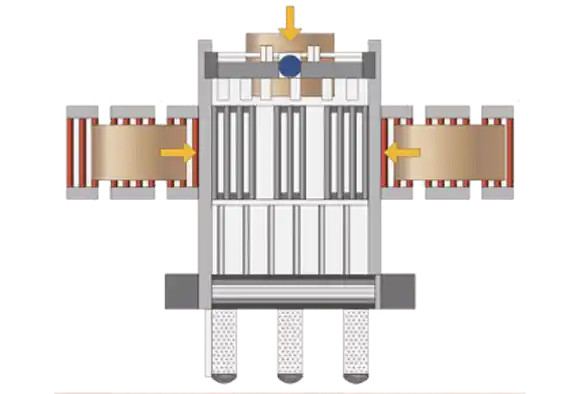

Mechanical Floating Grippers

Mechanical Floating Grippers

The grippers design with mechanical floating and fitted with rubber to avoid scratching on panel surface.

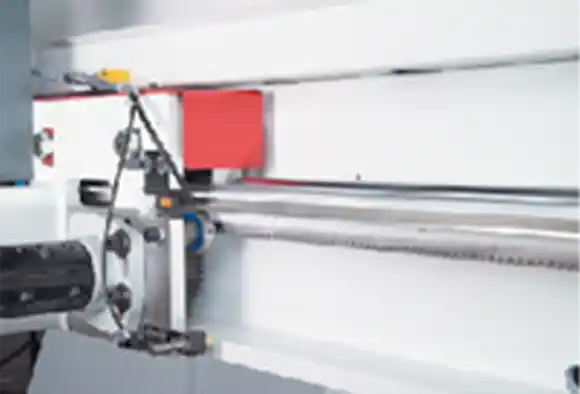

Automatically Swing Type Side Aligner

Automatically Swing Type Side Aligner

When cutting narrow panels, the pressing rollers can be applied for pressing panels against the angle fence, ensuring high square accuracy of cut.

Precision Magnetic Scale

Precision Magnetic Scale

The machine employs German-imported magnetic scale to achieve high panel positioning accuracy.

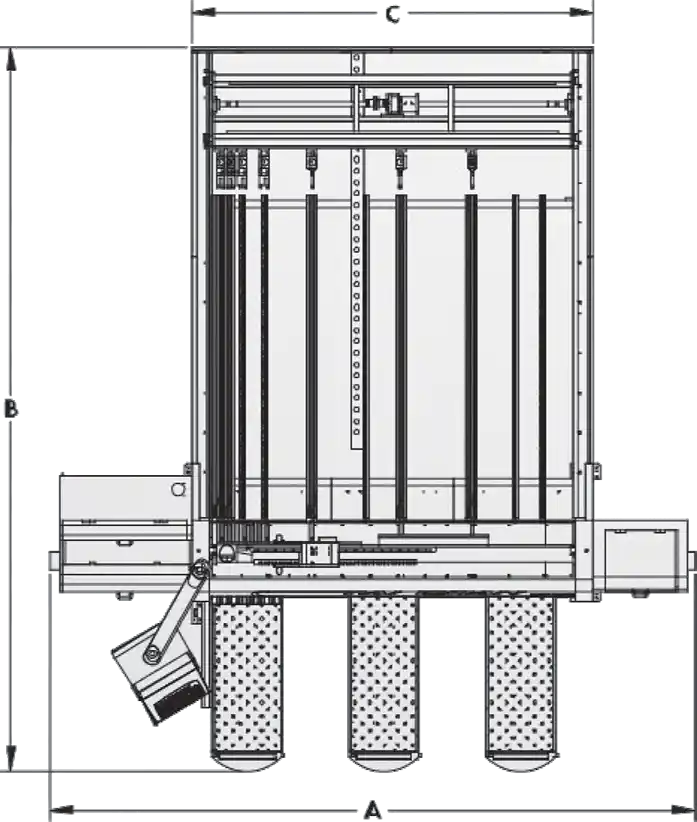

TPS-SN
A
B
C
10' - 3200
5613
6630
2100
12' - 3800
6213
7230
4200
Spesifikasi TPS-SN – Air Floating Computer Panel Saw
MODEL
10SN
12SN
CAPACITYMaximum cutting length
3200 mm
3800 mm
Maximum cutting depth
100 mm (Max. 120 mm)

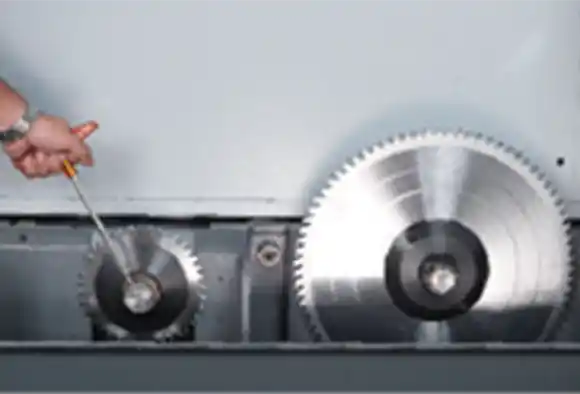

MAIN SAWBLADEMain blade diameter
Ø405 mm (Max. Ø455 mm)
Arbor diameter
Ø60 mm
Main blade speed
3910 RPM
SCORING SAWBLADEScoring blade diameter
Ø180 mm
Arbor diameter
Ø45 mm
Scoring blade speed
5100 RPM
SAW CARRIAGEFeed speed
100 M/min
Return speed
120 M/min
MOTORMain sawblade motor
20 HP (25 HP option)
Scoring sawblade motor
3 HP
Saw carriage drive motor
1 KW (AC servo motor)
High pressure blower motor
5 HP
Pusher drive motor
1 KW (AC servo motor)
LIFTING TABLEHydraulic motor
-
Horizontal motion motor
-
Max. loading capacity
-
OTHERSPusher feed speed
up to 80 M/min
Working air pressure
7 kg/cm2
Table height from floor
920 mm
Net weight
5580 kg
6580 kg
Gross weight
6380 kg
6480 kg

All specifications, dimensions and design characteristics are subject to change without notice
