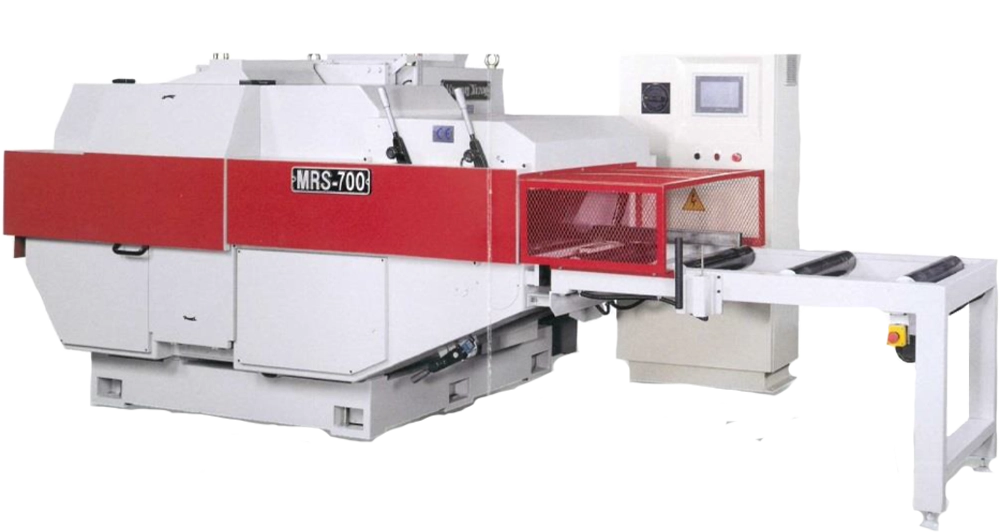

MRS-700 Double Arbor Multiple Rip Saw

MRS-700 Double Arbor Multiple Rip Saw cocok untuk produksi palet, material bangunan / konstruksi, dan frame pintu. Ketebalan kayu yang dapat dikerjakan mesin ini hingga 220mm.

MRS-700

Idealy Suited for Pallet, Building Materials, and Door Frame Manufacturing.

This machine is designed and engineered for first and second stages of material preparation, after log has been cut.

Provide great cutting capacity up to 220mm thick, and can replace a band saw.

  • Max. cutting thickness 220mm (8.7″)
  • Max. cutting 350mm (14″)
  • Touch-sensing screen.
  • Saw arbor motor 2 x 50, 60, 75, 100 or 125 HP
UPPER AND LOWER SAW ARBOR CONSTRUCTION

UPPER AND LOWER SAW ARBOR CONSTRUCTION
The machine is designed with upper and lower saw arbor, which give an increased cutting thickness up to 220mm.

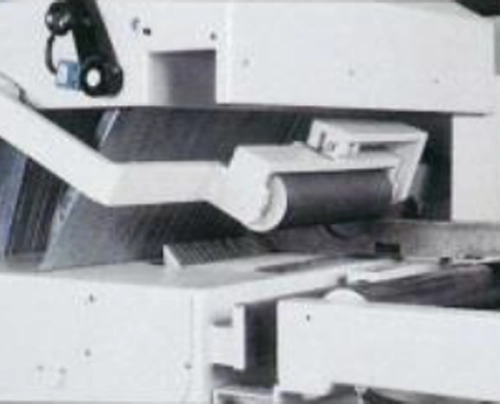

PNEUMATIC FEEDING CONVEYOR

This pneumatic feeding conveyor utilizes powerful upper and lower toothed infeed roller, improving safety and efficiency when working with heavy workpieces.

Human / Machine Interface (Picture shown is optional)

The machine employs a powerful PLC for user friendly operations. it also features a self diagnostic function for convenient troubleshooting. The touch sensing screen gives convenience for operation control.

SAWBLADE SIZE AND WOOD THICKNESS SELECTION

SAWBLADE SIZE AND WOOD THICKNESS SELECTION

TROUBLESHOOTING DISPLAY

TROUBLESHOOTING DISPLAY

CATALOGUE DISPLAY

CATALOGUE DISPLAY

AMPERAGE SETTING DISPLAY

AMPERAGE SETTING DISPLAY

Dimensions

Dimensions
Spesifikasi MRS-700
Model
MRS-700
Max. cutting thickness
220 mm (8.661")
Max. cutting width
350 mm (13.779")
Distance from column to link chain center
345 mm (13.583")
Mini. Working length
900 mm (35.433")
Max. sawblade diameter
ø350 mm (14")
Mini. Sawblade diameter
ø250 mm (10")
Sawblade bore
ø70 mm (2.756")
Saw arbor diameter
ø55 mm (2.165")
Saw arbor speed
2700 rpm OR 3300 rpm
Saw arbor motor
2 x 50. 60. 75. 100 or 125 HP
Variable feed speed (for electrical amperage display)
4 - 25 M/min (13' - 82'/min)
Feed motor
5 HP
Hold down roller elevating motor
1 HP
Table area (LxW)
2630 mm x 750 mm (104" x 29")
Packing dimensions (LxWxH)
2970 x 2520 x 1900 mm (117"x99"x75")
Net weight
5150 kgs
Gross weight
5600 kgs

Butuh info lebih lanjut? Hubungi 031-3531718
