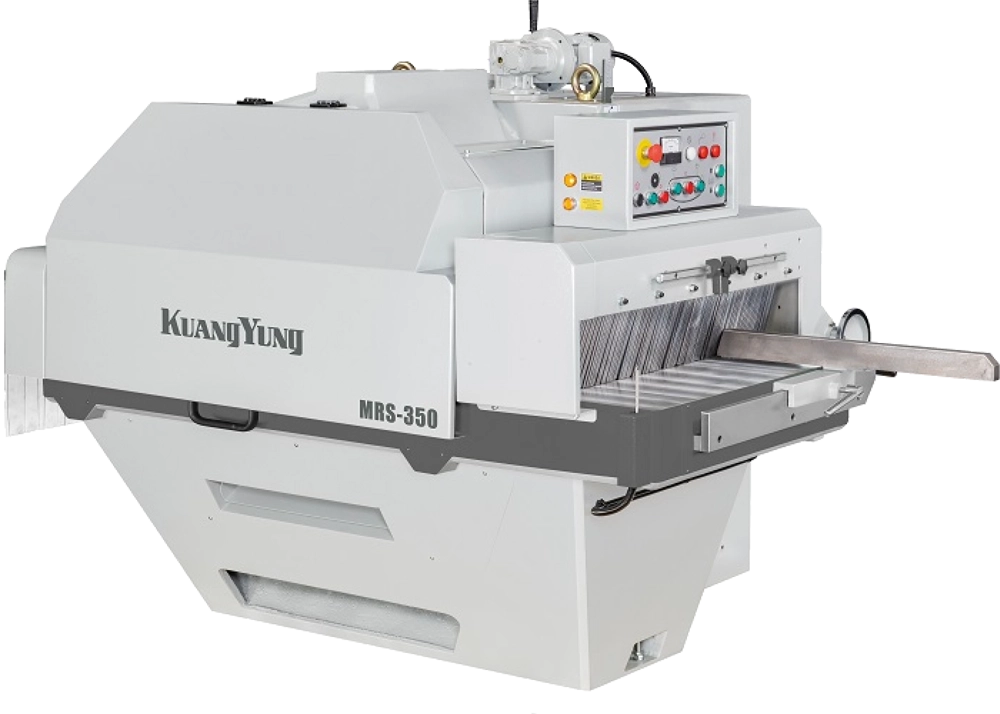

MRS-350 – Multiple Rip Saw

MRS-350

A Heavy Duty Multiple Rip Saw that Helps You Stay Competitive
This ruggedly constructed multiple rip saw is designed for powerful and heavy duty cutting operations. Driven by a 100HP motor making it ideal for cutting hard wood materials.

  • Cast iron frame
  • Straight line dip feed chain system

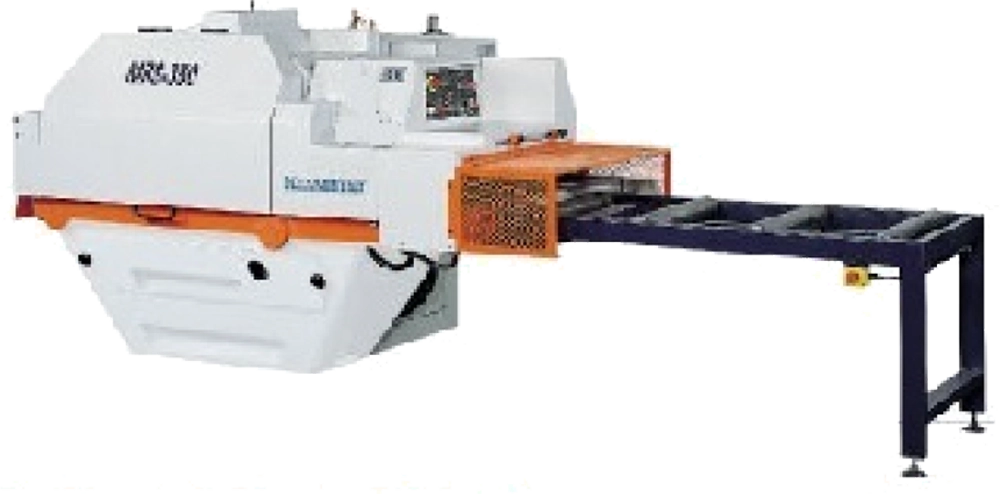

POWERFUL FEEDING ROLLER CONVEYOR (Optional)

POWERFUL FEEDING ROLLER CONVEYOR (Optional)
The feeding conveyor utilizes powerful upper and lower toothed infeed rollers, improving safety and efficiency when working with heavy workpieces.

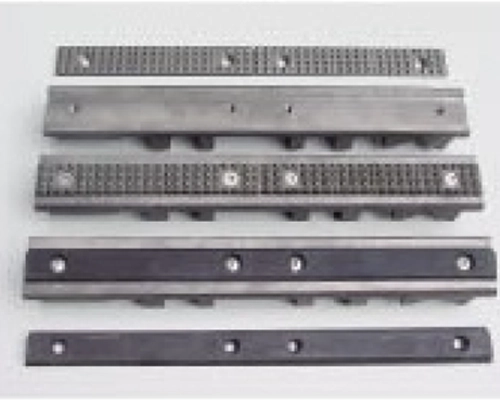

Replaceable chain block available for urethane or casting insert (optional)

MRS-350 Multiple Rip Saws Outstanding Features

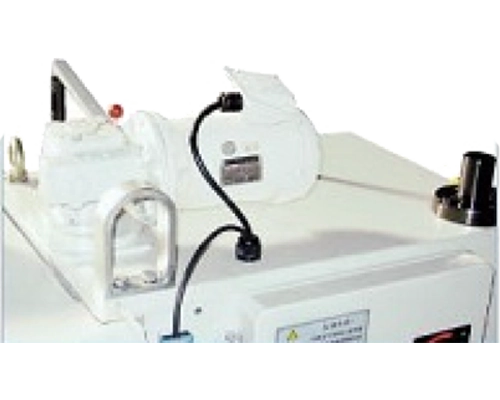

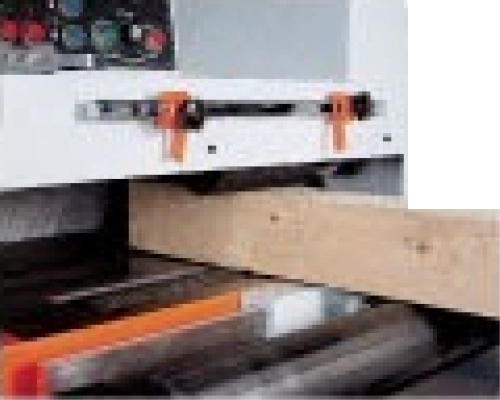

LASER DEVICE (OPTIONAL)

LASER DEVICE (OPTIONAL)
Provides convenient positioning of cut, which reduces material waste to a minimum.

PU PLATED FEED CHAIN BLOCK (OPTIONAL)

PU PLATED FEED CHAIN BLOCK (OPTIONAL)
The PU plated chain block is used to prevent damage to the workpiece surface.

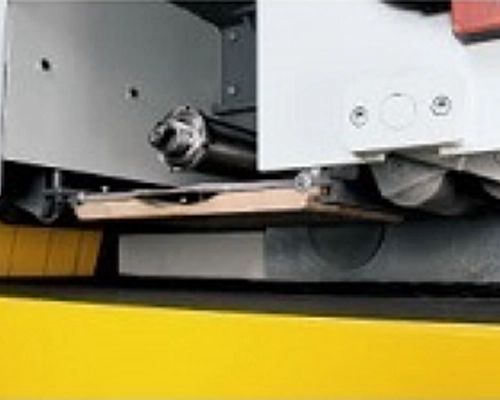

PRESSURE PLATE FOR SHORT OR THIN STOCK

PRESSURE PLATE FOR SHORT OR THIN STOCK (OPTIONAL FOR MRS-350)

POWERED ELEVATION ROLLERS

POWERED ELEVATION ROLLERS

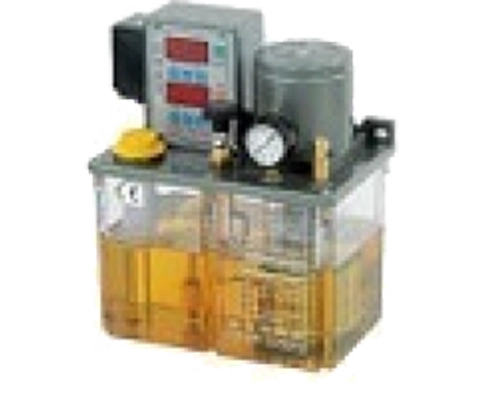

Digitally-Controlled Lubricator for Link Chain

Digitally-Controlled Lubricator for Link Chain
The central lubrication system ensures a permanent oil film between the chain and the guide rails. it varies the oil volume various kinds of wood. If there is insufficient oil in the oil tank, the warning lamp light up, and the link chain stops running automatically. This fully ensures the service life of the link chain and rails.

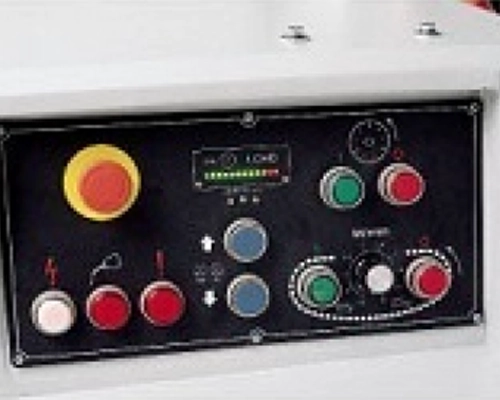

ELECTRICAL AMPERAGE DISPLAY (OPTIONAL)

ELECTRICAL AMPERAGE DISPLAY (OPTIONAL)
For overload protection of the saw motor. If the load of the saw motor exceeds the rated amperes, the link chain slows down automatically. This prevents the stock push from damaging the saw arbor or damaging the sawblades.

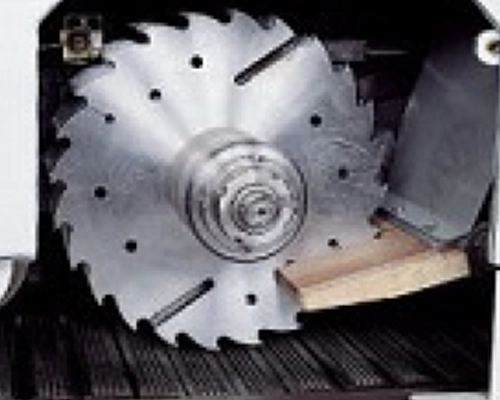

LINK CHAIN FEED

LINK CHAIN FEED
The link chain blocks are made of special cast iron. The high-grade steel connecting pins are heat treated and precision ground.  Each precisely made part guarantees straightline dip feeding even at high speeds.

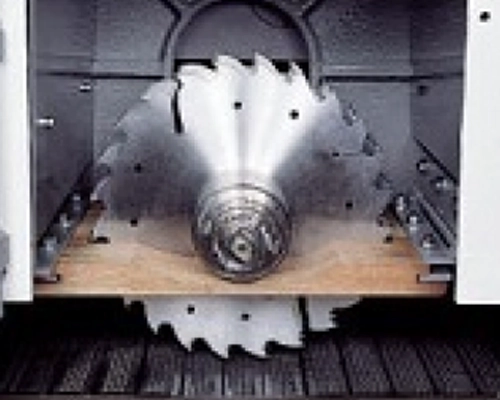

ANTI-KICKBACK GUARDING SYSTEM

ANTI-KICKBACK GUARDING SYSTEM
Two upper rows and one bottom row of anti-kickback fingers are engineered to provide comprehensive operator security.

Dimensional

Dimensional
Spesifikasi MRS-350
Model
MRS-350
Max. cutting thickness
135 mm (5.314")
Max. cutting width
350 mm (13.78")
Distance from column to link chain center
380 mm (14.961")
Mini. Working length
650 mm (25.591")
Max. sawblade diameter
ø405 mm (16")
Mini. Sawblade diameter
ø250 mm (10")
Sawblade bore
ø70 mm (2.756")
Saw arbor diameter
ø55 mm (2.165")
Saw arbor speed
3800 rpm (50, 60 HP) / 3000 rpm (75, 100 HP)
Saw arbor motor
50, 60, 75, 100 HP
Variable feed speed
7.5 - 30 M/min (24' - 98'/min)
Variable feed speed (for electrical amperage display)
2.5 - 24 M/min (8' - 79'/min)
Feed motor
2 HP (3 HP on request)
Hold down roller elevating motor
0.5 HP
Table area (LxW)
1840 mm x 770 mm (72"x31")
Packing dimensions (LxWxH)
2130 x 1790 x 1800 mm (83.8" x 70.5" x 70.9")
Net weight
2400 kgs
Gross weight
2700 kgs
