MRS-300

MRS-300
MULTIPLE RIP SAW

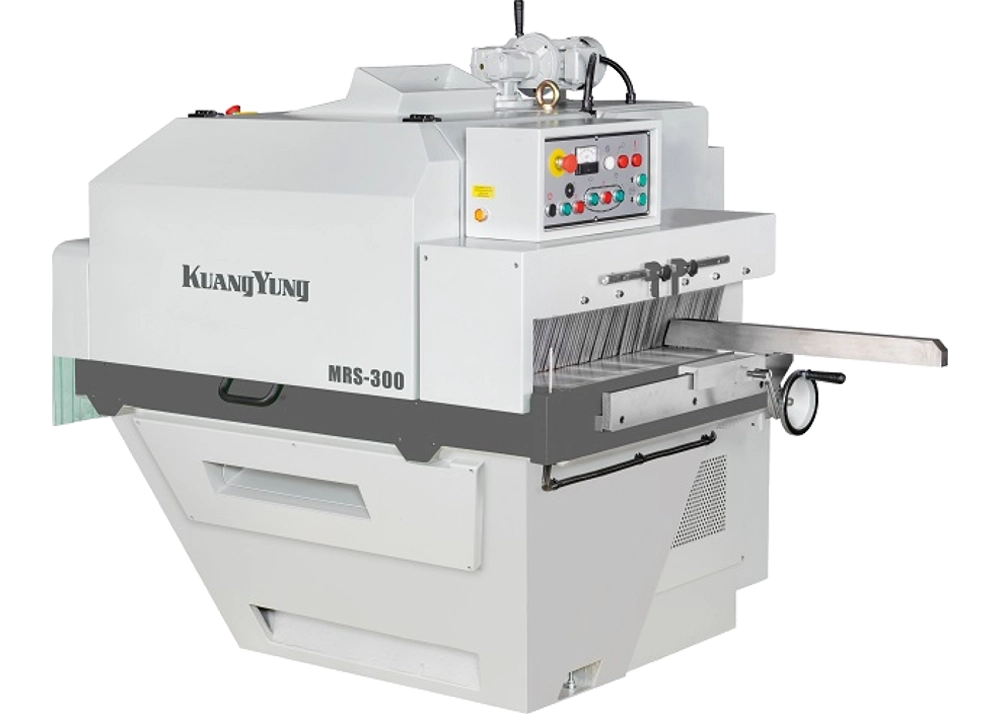

The Most Popular Model of Kuang Yung’s Multiple Rip Saws, MRS-300

The specially designed bracket elevation on worpiece pressure system allows for
more thickness variation.

MRS-300 Multiple Rip Saws Outstanding Features

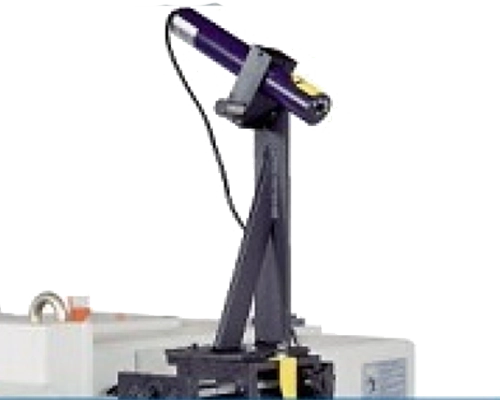

LASER DEVICE (OPTIONAL)

LASER DEVICE (OPTIONAL)
Provides convenient positioning of cut, which reduces material waste to a minimum.

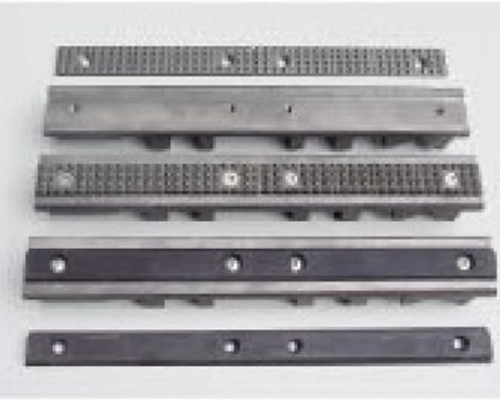

PU PLATED FEED CHAIN BLOCK (OPTIONAL)

PU PLATED FEED CHAIN BLOCK (OPTIONAL)
The PU plated chain block is used to prevent damage to the workpiece surface.

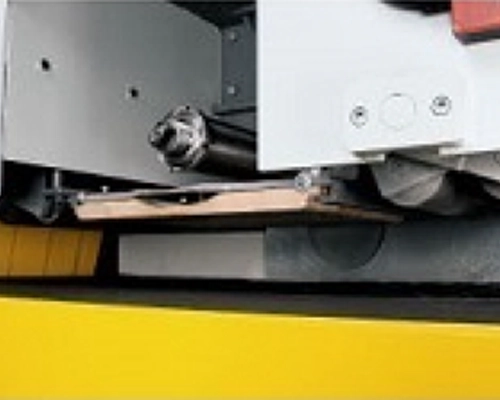

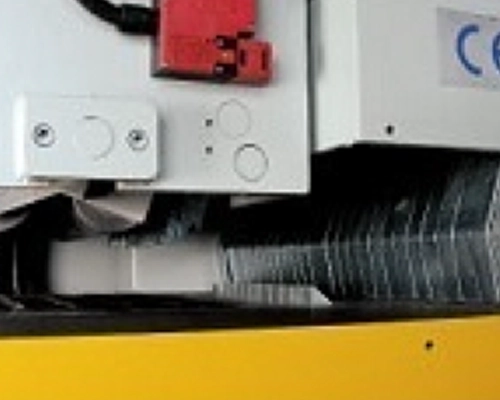

ANTI-KICKBACK GUARDING SYSTEM

ANTI-KICKBACK GUARDING SYSTEM
Two upper rows and one bottom row of anti-kickback fingers are engineered to provide comprehensive operator security.

POWERED ELEVATION ROLLERS

POWERED ELEVATION ROLLERS

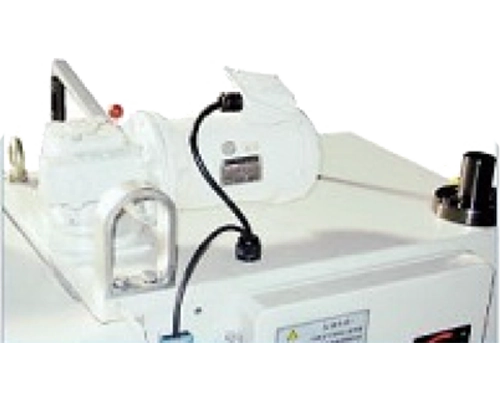

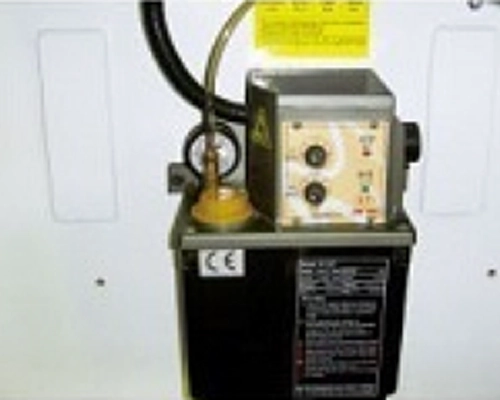

ADJUSTABLE LUBRICATION

ADJUSTABLE LUBRICATION FOR MRS-12, MRS-300
The adjustable central lubrication system ensures a permanent oil film between the chain and the guide rails. If there is insufficient oil in the oil tank, the warning lamp lights up, and the link chain stops running automatically. This fully ensures the service life of the link chain and rails.

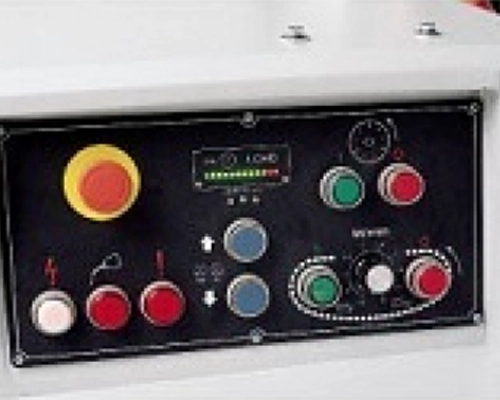

ELECTRICAL AMPERAGE DISPLAY (OPTIONAL)

ELECTRICAL AMPERAGE DISPLAY (OPTIONAL)
For overload protection of the saw motor. If the load of the saw motor exceeds the rated amperes, the link chain slows down automatically. This prevents the stock push from damaging the saw arbor or damaging the sawblades.

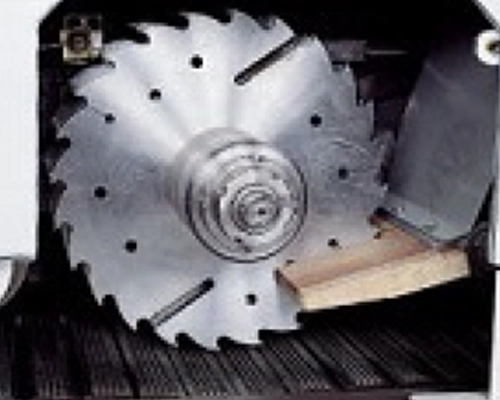

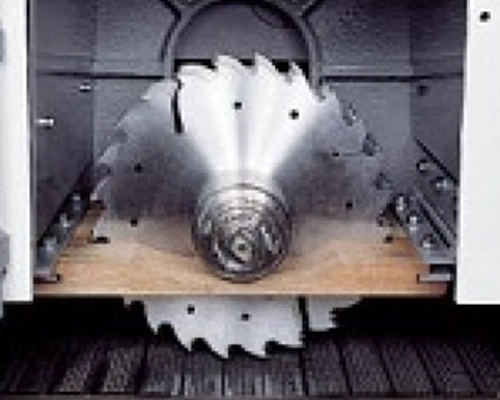

SHORT PIECE AND THIN PIECE CUTTING (OPTIONAL)

SHORT PIECE AND THIN PIECE CUTTING (OPTIONAL)
Each two rows of pressure rollers at the front and rear, combined with a specially designed pressure plate, make it possible for short or thin stock.

LINK CHAIN FEED

LINK CHAIN FEED
The link chain blocks are made of special cast iron. The high-grade steel connecting pins are heat treated and precision ground.  Each precisely made part guarantees straightline dip feeding even at high speeds.

Dimensional

Dimensional
Spesifikasi MRS-300
Model
MRS-300
Max. cutting thickness
120 mm (4.724")
Max. cutting thickness (w/short stock device)
95 mm (3.74") (optional)
Max. cutting width
300 mm (11.811")
Distance from column to link chain center
360 mm (14.173")
Mini. Working length
500 mm (19.685")
Mini. Working length (w/short stock device)
300 mm (11.811") (optional)
Max. sawblade diameter
ø350 mm (14")
Mini. Sawblade diameter
ø250 mm (10")
Sawblade bore
ø70 mm (2.756")
Saw arbor diameter
ø50 mm (1.969")
Saw arbor speed
3800 rpm
Saw arbor motor
30, 40, 50 HP
Variable feed speed
7.5 - 30 M/min (24' - 98'/min)
Variable feed speed (for electrical amperage display)
2.5-24 M/min (8'-79'/min)
Feed motor
2 HP (3 HP on request)
Hold down roller elevating motor
0.5 HP
Table area (LxW)
1530 mm x 760 mm (60" x 30")
Packing dimensions (LxWxH)
1880x1700x1700 mm (74"x67"x67")
Net weight
2050 kgs
Gross weight
2300 kgs
