Excitech

E2-9 Nesting Work Center

E2-9 Nesting Work Center
E2-9 Nesting Work Center 1

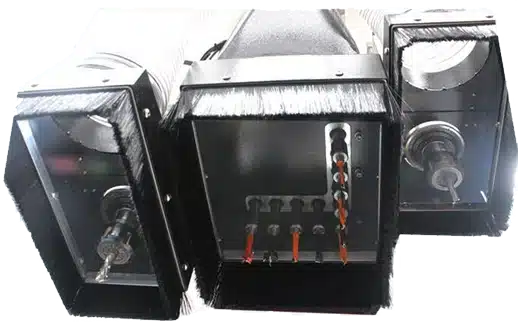

Two spindles, one for nesting, one for grooving, or have it your way-the two manual tool changing spindles work together and eliminates half of the tool-changing time. 5+4 Vertical Drill Block is standar feature.

E2-9 Nesting Work Center 2

Pop-up pins for accurate positioning of workpiece

G

Cara kerja mesin E2-9

H

Cara kerja mesin E2-9

AUM Video

Kunjungi Channel Youtube kami untuk melihat berbagai macam video menarik mesin-mesin perkayuan yang tersedia.

E2-9 with infeed and outfeed

E2-9 with infeed and outfeed

Introducing our budget nesting solution, still using the top notch components. Available as stand-alone machine, double table for double output or with automation

E2-9 Double Work Table

E2-9 Double Work Table

E2-9 Double Work Table 1

Rollers located at the front and rear end of the machine for easier loading and off-loading

Dimension

E2-9 Dimension
E2-9 Nesting Double Work Table
E2-9 Nesting
Spesifikasi E2-9 Nesting Work Center
MODEL
E2-9
Travelling size
2500 x 1260 x 200 mm
Working size
2440 x 1220 x 50 mm
Table size
2440 x 1228 mm
Unloading speed
15 m/min
Transmission
X/Y rack and pinion drive, Z ball screw drive
Table structure
Vacuum table
Spindle power
6.0 Kw / 5.5 Kw
Spindle speed
18000 r/min
Traveling speed
40 m/min
Working speed
18 m/min
Driving system
Yaskawa
Voltage
AC380 / 3PH / 50HZ
Controller
Syntec
